Name: 350-80-154-00-013101
Brand: Preci-Dip
SKU: 350-80-154-00-013101
Price: 5.17000 USD
Availability: InStock

new-10%

350-80-154-00-013101

Manufacturer part number:350-80-154-00-013101

Manufacturer:Preci-Dip

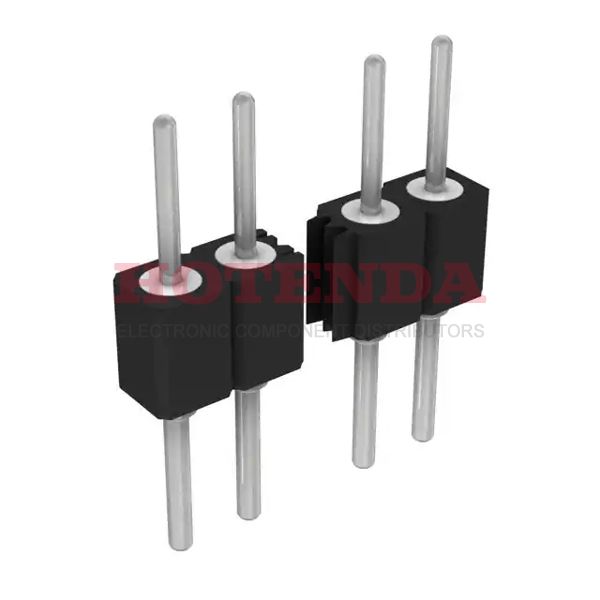

Description:350 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 54-Position Board to Board 0.116 2.95mm Height

Case Package:SOT-23

Datasheet:350-80-154-00-013101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	350
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	54
Number of Rows	1
Voltage - Rated	150VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Current Rating (Amps)	3A
Insulation Height	0.116 2.95mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	5.4 inch
Contact Length - Post	0.121 3.08mm
Shrouding	Unshrouded
Number Of PCB Rows	1
Contact Length - Mating	0.134 3.39mm
PCB Contact Pattern	RECTANGULAR
Overall Contact Length	0.416 10.57mm
Durability	500 Cycles
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

350-80-154-00-013101 Product Details

350-80-154-00-013101 Overview

Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 350 Series.Through Hole is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
