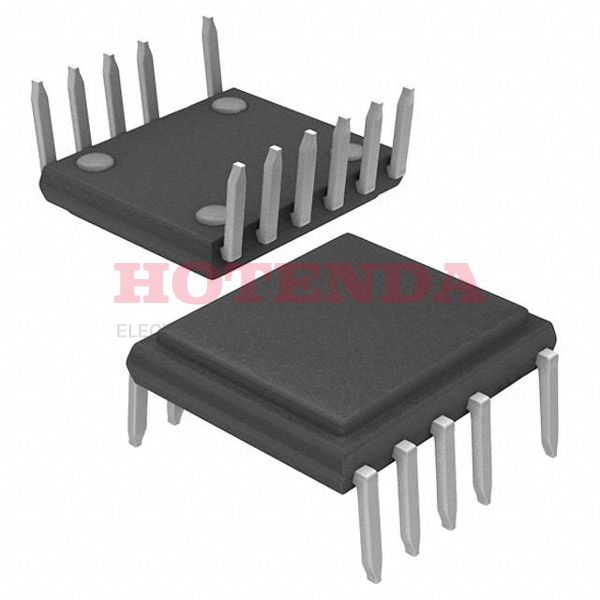

TOP265VG Overview
It is embedded in package 12-SDIP (0.412, 10.46mm) Exposed Pad .Tube case is available for the ac dc converter.A AC/DC converter of this type is mounted in the way of Through Hole .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ °C in order to achieve its full performance.ANALOG CIRCUIT analog ICs are employed in this AC DC converter.66kHz 132kHz is the switching frequency.On the ac/dc converter, there are 12 pins.The AC to DC converter belongs to the manufacturer family of TOPSwitch?-JX .In this AC to DC transformer, the output voltage is 12V .You are able to read the REACH SVHC standard at: No SVHC .Input voltages under 265V can be used to power the AC to DC converter.The output power of a coverter is assumed to be 25W .The AC to DC inverter may be operated with an input voltage less than 85V volts.There should be no less than 85V voltage across the converter.A maximum voltage of 265V can be applied across the converter.An input voltage (AC) should be applied under 265V to the AC to DC power converter.
TOP265VG Features
Packaged with 12-SDIP (0.412, 10.46mm) Exposed Pad
Switching Frequency at 66kHz 132kHz
With 12 pins
TOP265VG Applications
There are a lot of Power Integrations TOP265VG AC DC Converters applications.
- Battery chargers for mobile devices with touchpad display
- ATX/BTX Auxiliary Power
- Adaptors for Portable Media Player
- Home Appliance Applications
- Power tools
- Air Conditioning
- White goods
- USB-PD 2.0
- Standby and Auxiliary Power Supplies
- Wireless System
