TOP245FN Overview

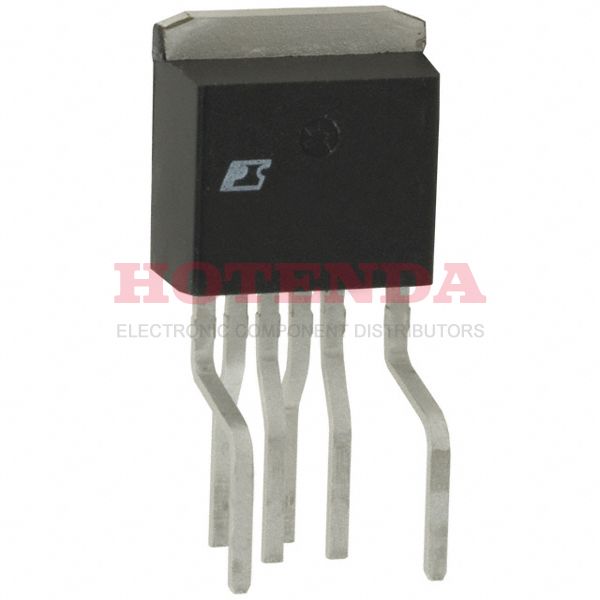

TO-262-7 (Formed Leads), 6 Leads is the package in which the ac to dc converter is embedded.The ac dc converter is available in Tube case.Through Hole is mounted in the way of this AC/DC converter.To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .Analog ICs of type SWITCHING REGULATOR are used in this AC DC converter.As a result, the switching frequency reaches 66kHz~132kHz .As a result, it has a total of 6 terminations.The ac-dc converter has 3 pins.The AC to DC converter belongs to the manufacturer family of TOPSwitch?-GX .The following ac to dc conversions are contained in Switching Regulator or Controllers .As a result, its output voltage is 12V .A maximum current of 2.88A may be supplied to the ac to dc inverter.A minimum voltage of 85V is required across the converter.There is a maximum supply voltage of 265V across the converter.
TOP245FN Features
Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz~132kHz
TOP245FN Applications
There are a lot of Power Integrations TOP245FN AC DC Converters applications.
- Utility meters
- Power adapters for network devices
- Adapter for ADSL
- Standby power supplies for VCR
- Cellular phone chargers
- Replacements for bulky plug-in transformers
- Power tools fast chargers with trickle and on/off
- Battery Chargers
- Standby power
- Standby and Auxiliary Power Supplies Set Top Boxes (STB)
