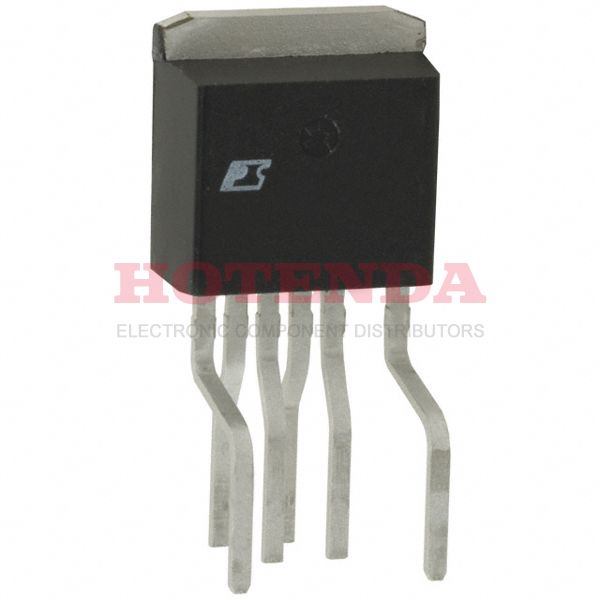

TOP242FN Overview
This ac to dc converter is embedded in package TO-262-7 (Formed Leads), 6 Leads .In Tube AC/DC power converter, it is available.As you can see, this AC/DC converter is mounted in the way of Through Hole .Ideally, the ac dc converter should be operated at a temperature of -40°C~150°C TJ degrees Celsius.In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING REGULATOR is employed.66kHz~132kHz is the switching frequency.There are a total of 6 terminations.In this ac-dc converter, there are 3 pins.It belongs to the manufacturer family of TOPSwitch?-GX .Its output voltage is12V .Ac to dc inverters can be supplied with a maximum current of 0.72A .Across the converter, the minimum supply voltage is 85V .There is a maximum supply voltage of 265V across the converter.
TOP242FN Features
Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz~132kHz
TOP242FN Applications
There are a lot of Power Integrations TOP242FN AC DC Converters applications.
- Standby power supplies for VCR
- Handheld/Battery-Powered Systems
- Replacements for bulky plug-in transformers
- AC?DC USB chargers for Cameras
- AC-DC Output Power Conversion Applications
- Automotive Infotainment
- Power adapters for monitors
- Open Frame Switching Power Supply
- Digital cameras
- AC/DC LED Driver applications
