TOP210GN Overview

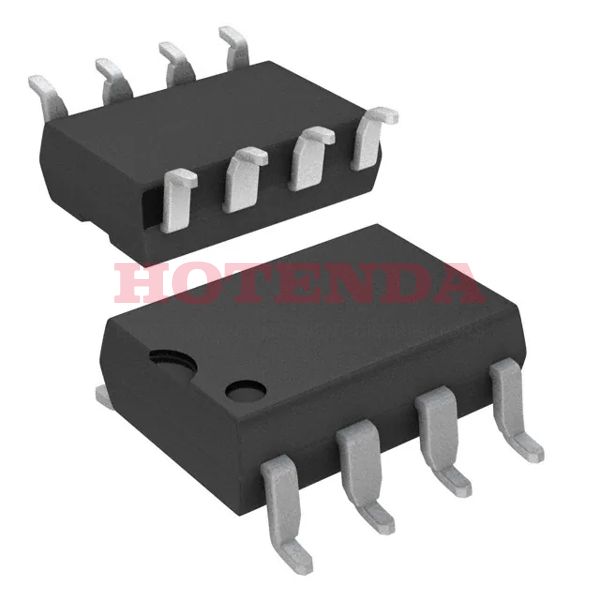

8-SMD, Gull Wing is the package in which the ac to dc converter is embedded.Tube case is available for the ac dc converter.The AC/DC converter is mounted in the way of Surface Mount .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.When the switching frequency reaches 100kHz , the circuit is closed.There have been 8 terminations of this program.A total of 8 pins are present on the ac-dc converter.Currently, it is acdc converter of the manufacturer family of TOPSwitch? .It produces a voltage of 5.8V .An amount of current of 0.1A can be supplied to the ac to dc inverter.Supply voltage across the converter must be 85V at all times.Across the converter, a maximum supply voltage of 265V may be applied.
TOP210GN Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 100kHz
TOP210GN Applications
There are a lot of Power Integrations TOP210GN AC DC Converters applications.
- Dimmers
- Battery chargers for mobile devices with touchpad display
- Tablets
- Power adapters for network devices
- PDAs
- White goods
- Digital cameras
- Small off-line low voltage power supplies
- Standby and Auxiliary Power Supplies Set Top Boxes (STB)
- 3.3V power supplies
