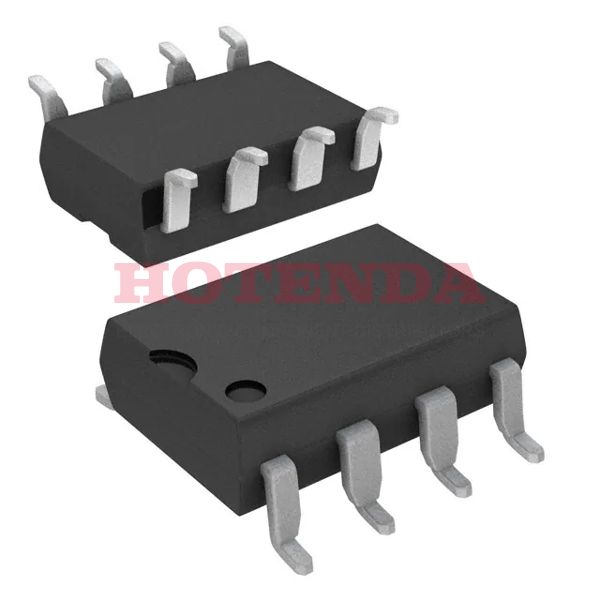

TOP209GN Overview
In the 8-SMD, Gull Wing package, the ac to dc converter is embedded.The AC/DC power converter type is Tube .In this case, the AC/DC converter is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ in order to ensure its performance.In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING REGULATOR is employed.There is 70kHz switching frequency.As a result, it has had 8 terminations.There are 8 pins on the ac/dc converter.A total of 8 pins are present on the ac-dc converter.This AC to DC converter belongs to the TOPSwitch? manufacturer family.There is 5.8V voltage output from it.Ac to dc inverters can be supplied with a maximum current of 0.1A .Across the converter, the minimum supply voltage is 85V .It is possible to supply 265V voltage across the converter.
TOP209GN Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 70kHz
With 8 pins
TOP209GN Applications
There are a lot of Power Integrations TOP209GN AC DC Converters applications.
- Battery Chargers
- Standby power supplies for TV
- AC?DC USB chargers for Tablets
- Air conditioners
- Cleaners
- Power Adaptors
- Standby Power Supplies
- Switching AC-DC Adapter
- Battery chargers for mobile devices with touchpad display
- Automotive Infotainment
