TOP209G Overview

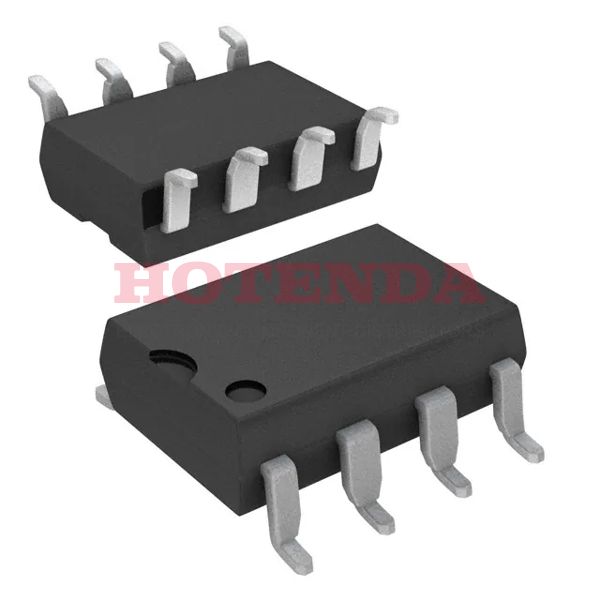

The ac to dc converter is embedded in 8-SMD, Gull Wing package.In Tube case, the ac dc converter is available.A AC/DC converter of this type is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ in order to ensure its performance.The AC DC converter uses a type SWITCHING REGULATOR analog integrated circuit.The switching frequency reaches 70kHz .It has a total of 8 terminations.There are 8 pins on the ac-dc converter.It belongs to the manufacturer family of TOPSwitch? .There is 5.8V output voltage from this AC/DC converter.Ac to dc inverters can be supplied with a maximum current of 0.1A .Across the converter, the minimum supply voltage is 85V .265V is the maximum supply voltage across the converter.
TOP209G Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 70kHz
TOP209G Applications
There are a lot of Power Integrations TOP209G AC DC Converters applications.
- Charger
- Remotely-controlled appliances
- Small off-line low voltage power supplies
- MP3
- Wall switches
- Power adapters for monitors
- Laptops
- Utility meters
- Adapters for Handheld Electronics
- Power Adaptors
