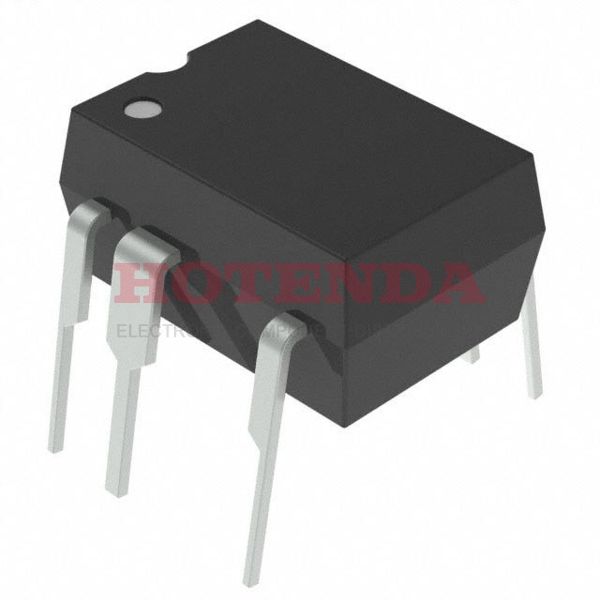

TNY375PN Overview
An embedded ac to dc converter is included in 8-DIP (0.300, 7.62mm), 7 Leads package.There is a AC/DC power converter of Tube available.Through Hole mounts this AC/DC converter.It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ °C in order to achieve its full performance.Analog IC type ANALOG CIRCUIT is utilized in this AC DC converter.Switching frequency reaches 132kHz~264kHz Hz.The ac/dc converter has 7 pins.Through Hole are the recommended mounting method for the ac dc converters.The AC to DC converter belongs to the manufacturer family of TinySwitch?-PK .In this AC to DC transformer, the output current is set to 600mA .As a result, its output voltage is 700V .The output power of a coverter generates 16.5W .The AC to DC power supply can operate with a minimum supply voltage of -300mV volts.
TNY375PN Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 132kHz~264kHz
With 7 pins
Output Current at 600mA
TNY375PN Applications
There are a lot of Power Integrations TNY375PN AC DC Converters applications.
- Low power ac?dc Adapters for Chargers
- Replacements for bulky plug-in transformers
- AC--DC Adapter
- Auxiliary Power Supply
- Automotive Infotainment
- Adapter/Charger for Cordless Phones
- Digital cameras
- Laptops and personal digital assistants
- Power adapters for network devices
- Set -Top Box (STB) Power Supply
