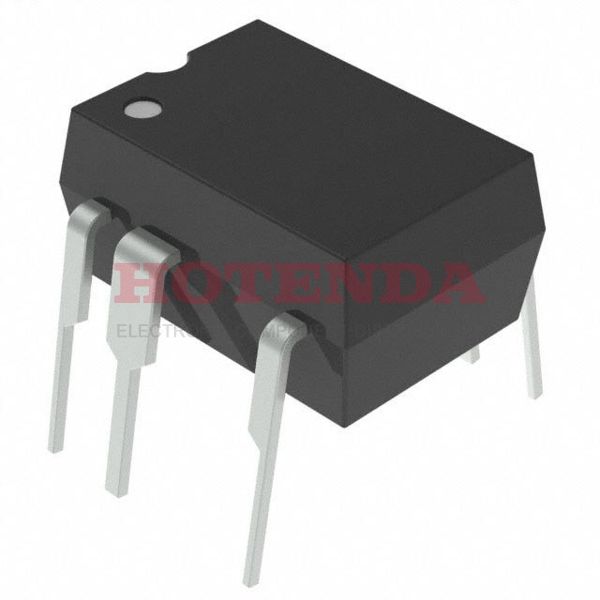

TNY274PN Overview
In the package 8-DIP (0.300, 7.62mm), 7 Leads , the ac to dc converter is embedded.In Tube AC/DC power converter, it is available.As you can see, this AC/DC converter is mounted in the way of Through Hole .The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.In this AC DC converter, the analog IC type is SWITCHING REGULATOR .In this AC to DC transformer, the switching frequency is 132kHz .As a result, it has a total of 7 terminations.There are 7 pins on the ac/dc converter.There are a total of 8 pins on the ac-dc converter.It is suitable for mounting by Through Hole .Currently, it is acdc converter of the manufacturer family of TinySwitch?-III .A total of 1 outputs are to be processed.It produces a voltage of 12V .The input voltage with the maximal value of 2.6V can be ensured on the basis of unique technique.In the AC to DC transformer of a coverter, the output power is 8.5W .This converter requires a minimum supply voltage of 85V volts.There is a maximum supply voltage of 265V across the converter.This output uses Adjustable .
TNY274PN Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 132kHz
With 7 pins
Output Type : Adjustable
TNY274PN Applications
There are a lot of Power Integrations TNY274PN AC DC Converters applications.
- Air conditioners
- Records
- LED lights
- Adaptors for DSCs
- Wireless System
- Vacuum Cleaner
- Air Conditioning
- Adaptors for Portable Media Player
- MPS parts
- Appliances
