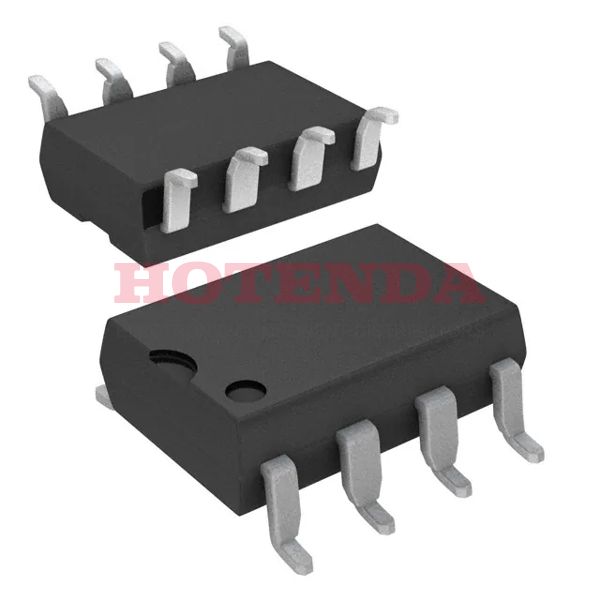

TNY255GN Overview
In the package 8-SMD, Gull Wing , the ac to dc converter is embedded.Tube case is available for the ac dc converter.The AC/DC converter is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ in order to ensure its performance.The AC DC converter uses a type SWITCHING REGULATOR analog integrated circuit.In this AC to DC transformer, the switching frequency is 130kHz .A total of 8 terminations have been recorded.A ac/dc converter with 8 pins is available.The pins of the ac-dc converter total to 8 .There are no problem mounting the ac dc converters by Surface Mount .It belongs to the family of TinySwitch? manufacturers.A total of 1 outputs need to be run.We have set the output current to 310mA .It produces a voltage of 5.8V .In the AC to DC transformer of a coverter, the output power generated is 6.5W .There should be no less than 85V voltage across the converter.This converter can operate at a maximum supply voltage of 265V .
TNY255GN Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 130kHz
With 8 pins
Output Current at 310mA
TNY255GN Applications
There are a lot of Power Integrations TNY255GN AC DC Converters applications.
- Adaptors for DSCs
- DVD players
- Smartphones
- Vacuum Cleaner
- Laptops and personal digital assistants
- Replacements for bulky plug-in transformers
- Battery chargers for cellular phones
- Set Top Boxes (STB)
- Standby Power Supply
- Shaver Charger
