TFS764HG Overview

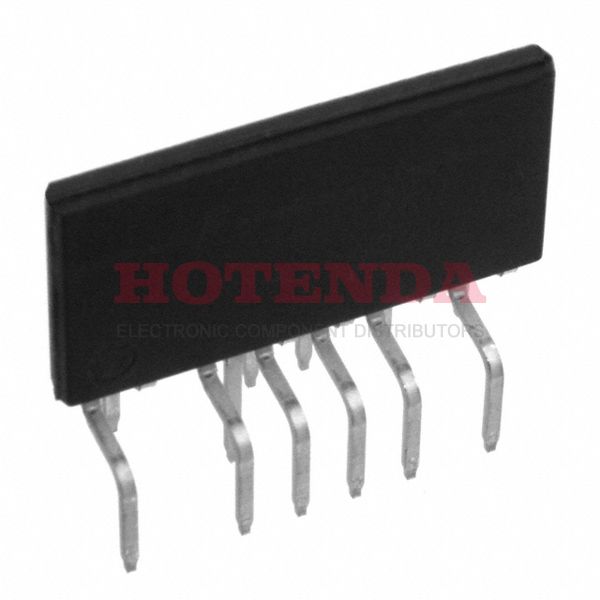

16-SSIP, 12 Leads, Exposed Pad, Formed Leads is the package in which the ac to dc converter is embedded.In Tube case, the ac dc converter is available.As you can see, this AC/DC converter is mounted in the way of Through Hole .The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.A DUAL SWITCHING CONTROLLER analog integrated circuit is used in this AC DC converter.Switching frequency reaches 66kHz Hz.Within the range of 11.1V~13.4V supply voltage (Vcc/Vdd), it can be used.In this ac/dc converter, there are 12 pins.This AC to DC converter belongs to the HiperTFS? manufacturer family.The number of outputs to run is 1 .There is 400V voltage output from it.You can read the standard for REACH SVHC at: No SVHC .An input voltage of 400V is available for powering the AC to DC converter.The output power of a coverter generates 530W .An input voltage of less than 100V V is required to operate the AC to DC inverter.
TFS764HG Features
Packaged with 16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Switching Frequency at 66kHz
With 12 pins
TFS764HG Applications
There are a lot of Power Integrations TFS764HG AC DC Converters applications.
- Home appliances
- Rice Cooker
- DVD players
- Universal Off-Line Power Supplies
- ATX/BTX Auxiliary Power
- AC?DC USB chargers for Cell Phones
- Wall switches
- Auxiliary Power Supply
- Power tools
- AC/DC Adaptors/Chargers for E-books
