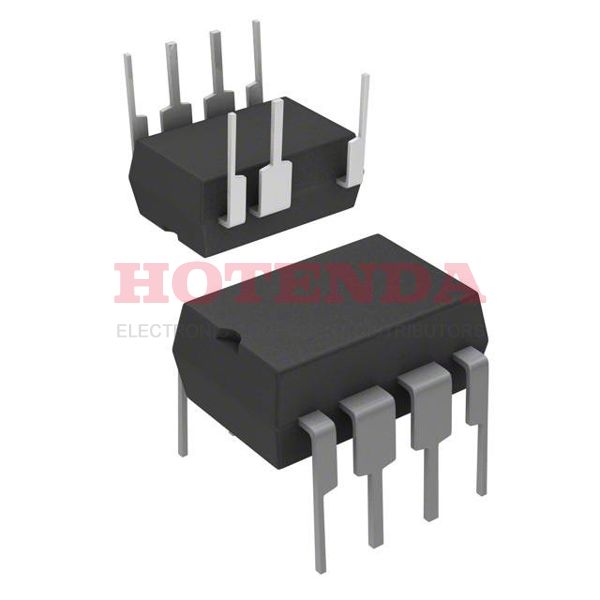

LNK354PN Overview
In the 8-DIP (0.300, 7.62mm), 7 Leads package, the ac to dc converter is embedded.Tube case is available for the ac dc converter.There is a mounting point for this AC/DC converter in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.Switching frequency reaches 200kHz Hz.In total, it has 7 terminations.The pins of the ac-dc converter count up to 8 .This AC to DC converter belongs to the LinkSwitch?-HF family of manufacturers.There is 5.8V voltage output from it.A maximum current of 0.4A may be supplied to the ac to dc inverter.Using this ACDC converter, REQUIRES AN AC SUPPLY OF 85 TO 265V is also accessible.There should be no less than 85V voltage across the converter.Across the converter, a maximum supply voltage of 265V may be applied.
LNK354PN Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 200kHz
LNK354PN Applications
There are a lot of Power Integrations LNK354PN AC DC Converters applications.
- Appliance Power Supplies
- Networking
- Cellular phone chargers
- Vacuum Cleaner
- AC?DC USB chargers for Tablets
- Universal Off-Line Power Supplies
- Power adapters for network devices
- Battery Chargers
- AC/DC LED Driver applications
- Replaces linear transformers
