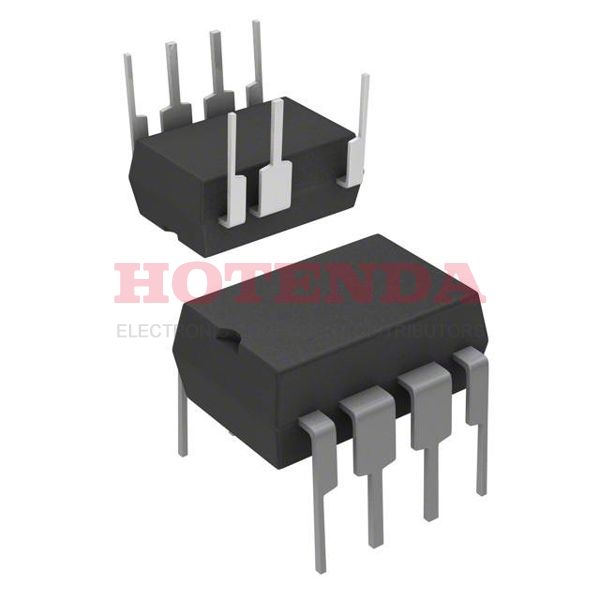

LNK353PN Overview
In the package 8-DIP (0.300, 7.62mm), 7 Leads , the ac to dc converter is embedded.There is a AC/DC power converter of Tube available.It is mounted in the way of Through Hole .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.A SWITCHING REGULATOR analog integrated circuit is used in this AC DC converter.When the switching frequency reaches 200kHz , the process is complete.There have been 7 terminations of this program.There are 8 pins in the ac-dc converter.It belongs to the manufacturer family of LinkSwitch?-HF .The voltage output by this AC/DC converter is 5.8V .Ac to dc inverters can be powered by up to 0.4A current.In addition to REQUIRES AN AC SUPPLY OF 85 TO 265V , this ACDC converter can also be used to determine REQUIRES AN AC SUPPLY OF 85 TO 265V .There should be no less than 85V voltage across the converter.265V is the maximum supply voltage across the converter.
LNK353PN Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 200kHz
LNK353PN Applications
There are a lot of Power Integrations LNK353PN AC DC Converters applications.
- AC-DC Output Power Conversion Applications
- Shaver Charger
- Remotely-controlled appliances
- Standby power supplies for VCR
- AC/DC Adaptors/Chargers for PDAs
- Standby Power for General Off-Line Applications
- Appliance Power Supplies
- Home appliances
- AC/DC Adaptors/Chargers for Cordless Phone
- DVD players
