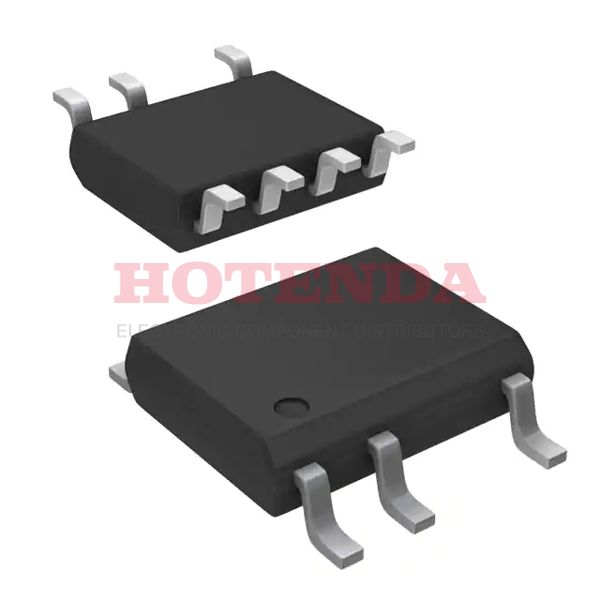

Name: LNK306DN
Brand: Power Integrations
SKU: LNK306DN
Availability: InStock

new-10%

LNK306DN

Manufacturer part number:LNK306DN

Manufacturer:Power Integrations

Description:8 Terminations8 Pin AC to DC power converterLinkSwitch?-TN Series 1 Outputs

Case Package:SOT-23

Datasheet:LNK306DN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width), 7 Leads
Number of Pins	8
Operating Temperature	-40°C~150°C TJ
Packaging	Tube
Published	2007
Series	LinkSwitch®-TN
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Power Rating	80mW
Max Power Dissipation	12mW
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Frequency	66kHz
Pin Count	8
Number of Outputs	1
Output Voltage	700V
Max Supply Voltage	265V
Min Supply Voltage	85V
Analog IC - Other Type	SWITCHING REGULATOR
Nominal Supply Current	250μA
Output Current	360mA
Topology	Buck, Buck-Boost, Flyback
Min Input Voltage	85V
Max Input Voltage	265V
Control Technique	PULSE WIDTH MODULATION
Internal Switch(s)	Yes
Fault Protection	Current Limiting, Open Loop, Over Temperature, Short Circuit
Max Duty Cycle	72 %
Drain to Source Resistance	7Ohm
Duty Cycle	69%
Output Isolation	Non-Isolated
Min Input Voltage (AC)	85V
Max Input Voltage (AC)	265V
Height	1.65mm
Length	4.9mm
Width	3.9mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

LNK306DN Product Details

LNK306DN Overview

The ac to dc converter is embedded in 8-SOIC (0.154, 3.90mm Width), 7 Leads package.The AC/DC power converter is available in Tube .Surface Mount mounts this AC/DC converter.To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .The AC DC converter uses a type SWITCHING REGULATOR analog integrated circuit.There are a total of 8 terminations.On this ac/dc converter, there are 8 pins.The pins of the ac-dc converter total to 8 .Surface Mount is the recommended mounting method for the ac dc converters.It belongs to the family of LinkSwitch?-TN manufacturers.The number of outputs to run is 1 .In this AC to DC transformer, the output current is set to 360mA .There is 700V output voltage from this AC/DC converter.This power AC DC is capable of reaching high efficiency when operating at a frequency of 66kHz .You can read the standard of REACH SVHC : No SVHC .The AC to DC converter can be powered from the input voltage under 265V .It is possible to use the AC to DC inverter with an input voltage less than 85V V.AC to DC power converters should be able to accept input voltages (AC) below 265V .AC to DC converter can work with the minimum supply voltage of 85V .
