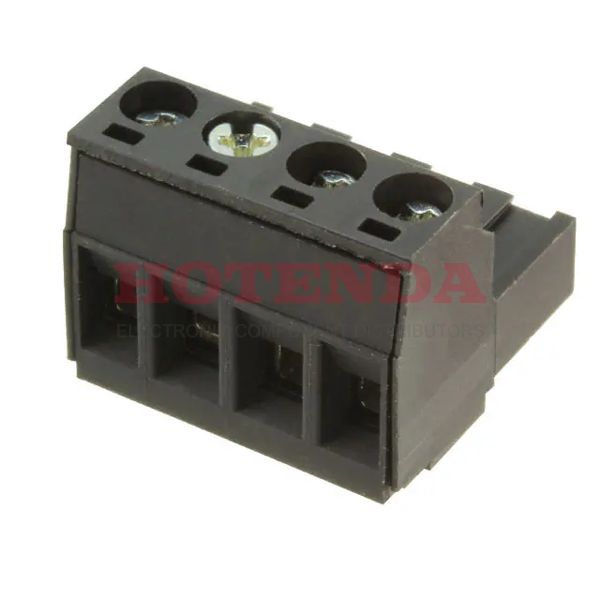

Name: 5452215
Brand: Phoenix Contact
SKU: 5452215
Price: 4.51000 USD
Availability: InStock

new-10%

5452215

Manufacturer part number:5452215

Manufacturer:Phoenix Contact

Description:5452215 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:5452215 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2016
Series	BCP
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug, Female Sockets
Number of Positions	4
Color	Black
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

5452215 Product Details

5452215 Overview

Free Hanging (In-Line) is the mounting type of the device.Packaging is performed using a Bulk case.As a product of the BCP Series, it can be found in this category.This feature renders it more powerful in a number of ways because of its Retention Latches (Non-Wire Side) feature.Part Free Hanging is mounted to the part.Other Plug, Female Sockets products share lots of benefits with this part.
