5437567

5437567

5437567

Phoenix Contact

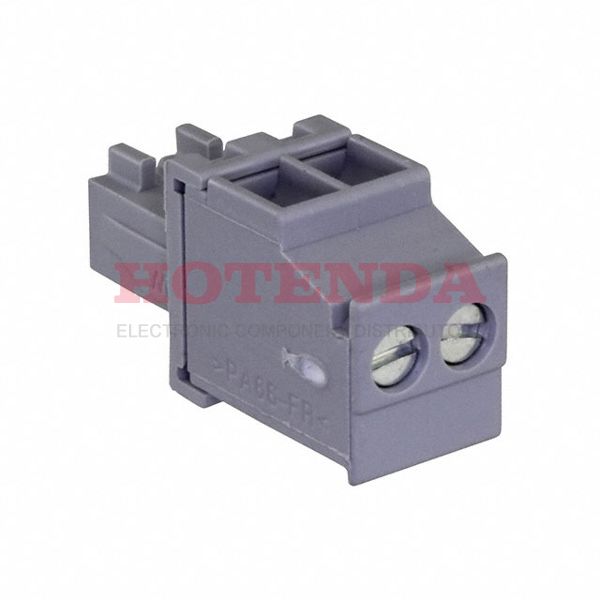

5437567 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

5437567 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2015
Series BCVP
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Gray
Number of Rows 1
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.752 19.10mm
Reach Compliance Code unknown
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways 2
Safety Approval CUL; UL
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:4296 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.57000$2.57
10$2.46000$24.6
50$2.39300$119.65
100$2.23650$223.65
250$2.05760$514.4
500$1.90102$950.51

5437567 Product Details

5437567 Overview


Mounting type Free Hanging (In-Line) is assigned to the device.To package the product, we use a Bulk case.This product is in the BCVP Series.There are also features like PA, UL 94V-0, just to name a few.It is mounted by Free Hanging.There are many benefits that this part shares with other Plug, Female Sockets products as well.

5437567 Features


BCVP series

5437567 Applications


There are a lot of Phoenix Contact 5437567 Terminal Blocks applications.

  • Blowers
  • Military Technology
  • Instrumentation
  • Communication
  • Embedded systems
  • Data Technology
  • Transportation
  • Medical technology
  • Refrigeration control
  • Datacom
