Name: 5434560
Brand: Phoenix Contact
SKU: 5434560
Price: 5.82000 USD
Availability: InStock

new-10%

5434560

Manufacturer part number:5434560

Manufacturer:Phoenix Contact

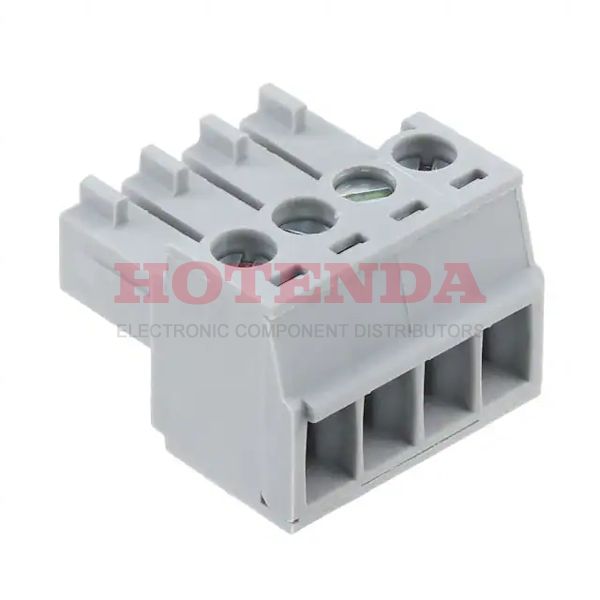

Description:Bulk 0.138 3.50mm Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets BCP Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:5434560 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	BCP
Published	2012
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Gray
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	16.1mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw
Number of Contacts	4
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways	4
Safety Approval	CUL; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Length	14.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

5434560 Product Details

5434560 Overview

This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the BCP Series.There is a mounting hole at Cable, Free Hanging.There should be no voltage above 0 on the supply line for this chip.There are many benefits that this part shares with other Plug, Female Sockets products as well.
