3240086 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240086 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
CLIPLINE
Published
2011
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Silver
HTS Code
8536.90.40.00
Contact Finish
Tin
Wire Gauge
10-14 AWG
Wire Gauge (Max)
14 AWG
Wire Gauge (Min)
10 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Terminal Type
Circular
Stud/Tab Size
M8 Stud
Length
26.0096mm
Width
14mm
Thickness
0.039 0.99mm
Length - Overall
1.024 26.00mm
Width - Outer Edges
0.551 14.00mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:23724 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.220433
$0.220433
10
$0.207956
$2.07956
100
$0.196184
$19.6184
500
$0.185080
$92.54
1000
$0.174603
$174.603
3240086 Product Details
Description:

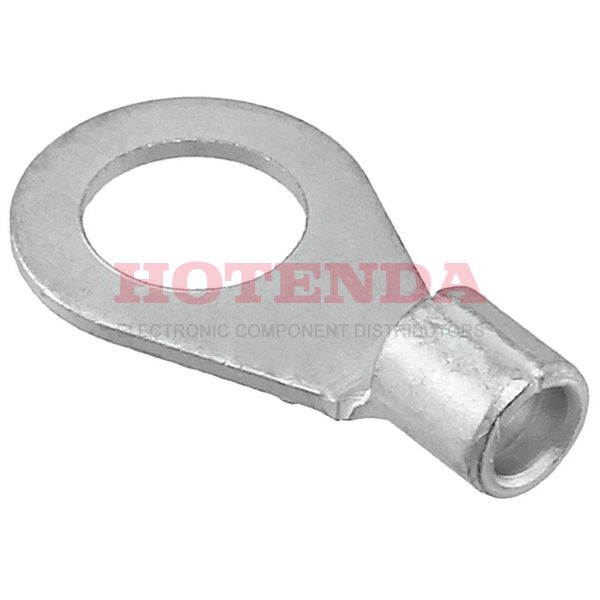

The Phoenix Contact 3240086 Ring Connectors are non-insulated terminals for cable lugs with a cross section of 2.6 - 6 mm2. They feature an M8 thread and are designed for use in a wide range of applications.
Features:
- Non-insulated terminals for cable lugs with a cross section of 2.6 - 6 mm2
- M8 thread
- Designed for use in a wide range of applications
Applications:
The Phoenix Contact 3240086 Ring Connectors are suitable for use in a variety of applications, including:
- Automotive
- Industrial
- Telecommunications
- Lighting
- Power distribution
