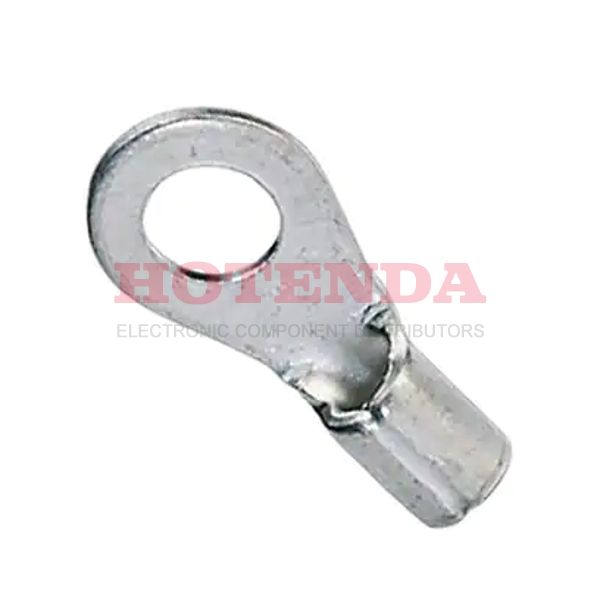

3240085 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240085 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
CLIPLINE
Published
2011
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Silver
HTS Code
8536.90.40.00
Contact Finish
Tin
Wire Gauge
10-14 AWG
Wire Gauge (Max)
14 AWG
Wire Gauge (Min)
10 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Terminal Type
Circular
Stud/Tab Size
M6 Stud
Length
21.9964mm
Width
11mm
Thickness
0.039 0.99mm
Length - Overall
0.866 22.00mm
Width - Outer Edges
0.433 11.00mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:28109 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.24000
$0.24
10
$0.23700
$2.37
50
$0.22160
$11.08
100
$0.20480
$20.48
250
$0.19008
$47.52
500
$0.18166
$90.83
3240085 Product Details
Description:
The Phoenix Contact 3240085 Ring Connectors are non-insulated terminals for cable lugs with a cross section of 2.6 - 6 mm2. These terminals feature a M6 thread and are designed for use in a wide range of applications.
Features:
• Non-insulated terminals for cable lugs with a cross section of 2.6 - 6 mm2
• M6 thread
• High quality and reliable connection
• Easy to install
Applications:
The Phoenix Contact 3240085 Ring Connectors are suitable for a wide range of applications, including industrial automation, control systems, and power distribution. They are ideal for use in harsh environments and can be used in a variety of applications, including motor control, power distribution, and signal transmission.
