3240024 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240024 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Package / Case
100
Material - Insulation
Plastic
Packaging
Bulk
Series
CLIPLINE
Published
2015
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Blue
HTS Code
8536.90.40.00
Contact Finish
Tin
Wire Gauge
14-16 AWG
Wire Gauge (Max)
16 AWG
Wire Gauge (Min)
14 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Insulated
Thread Size
M5
Terminal Type
Circular
Wire Cross Section
2.5 mm2
Stud/Tab Size
M5 Stud
Length
23.0124mm
Thickness
0.031 0.79mm
Length - Overall
0.906 23.00mm
Width - Outer Edges
0.374 9.50mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:21990 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.35000
$0.35
10
$0.32700
$3.27
50
$0.31880
$15.94
100
$0.29890
$29.89
250
$0.27624
$69.06
500
$0.25638
$128.19
3240024 Product Details

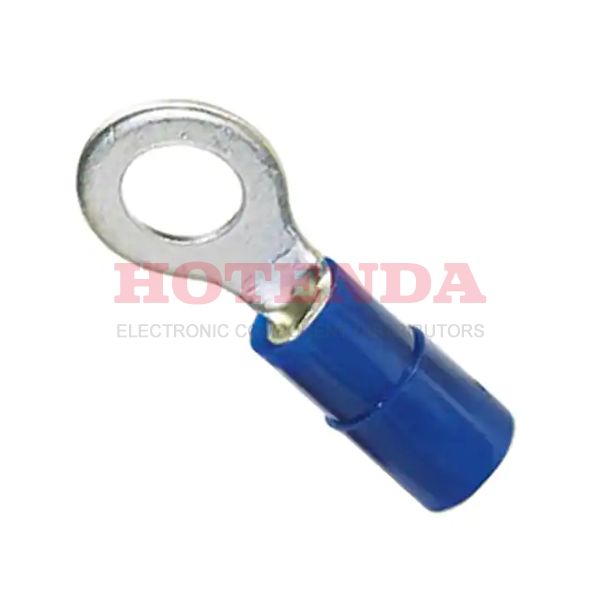

The Phoenix Contact 3240024 Ring Connectors are a reliable and durable solution for connecting cables with a cross section of 1.5-2.5 mm2. These terminals are made of high-quality materials and feature a blue M5 ring cable lug for easy installation. The terminals are designed to provide a secure connection and are suitable for a wide range of applications. They are also resistant to corrosion and have a long service life. The Phoenix Contact 3240024 Ring Connectors are an ideal choice for any project requiring a reliable and durable connection.
