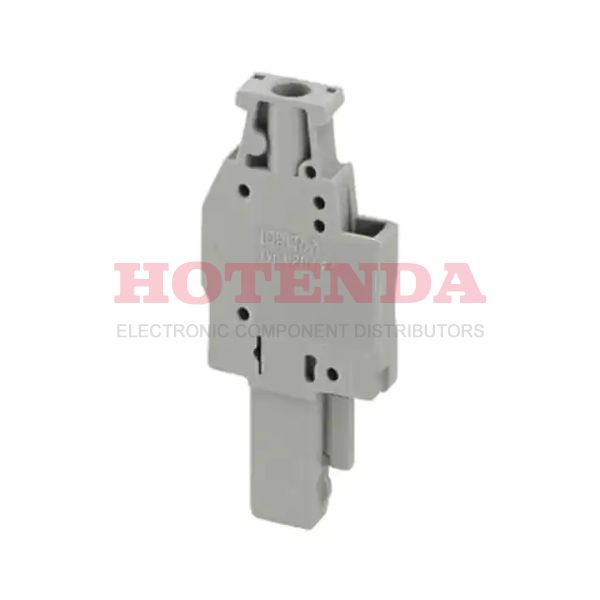

Name: 3045145
Brand: Phoenix Contact
SKU: 3045145
Price: 1.60000 USD
Availability: InStock

new-10%

3045145

Manufacturer part number:3045145

Manufacturer:Phoenix Contact

Description:3045145 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:3045145 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	2.550096kg
Packaging	Bulk
Published	2010
Series	CLIPLINE COMBI UPBV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Gray
Number of Rows	2
Voltage - Rated	500V
HTS Code	8536.69.40.40
Depth	5mm
Insulation Height	1.850 47.00mm
Current Rating	24A
Termination Style	Screw
Approval Agency	UL
Voltage	600V
Number of Levels	1
Current	20A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	2
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	500V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-4mm2
Wire Strip Length	9mm
Current - IEC	24A
Screw Size	M3
Wire Cross Section	4 mm2
Length	21mm
Width	5.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

3045145 Product Details

3045145 Overview

There is a mounting type of Free Hanging (In-Line) for this device.To package the product, a Bulk case is used.A product of the CLIPLINE COMBI UPBV Series, it belongs to the range of products of that series.By Free Hanging, the part is mounted.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
