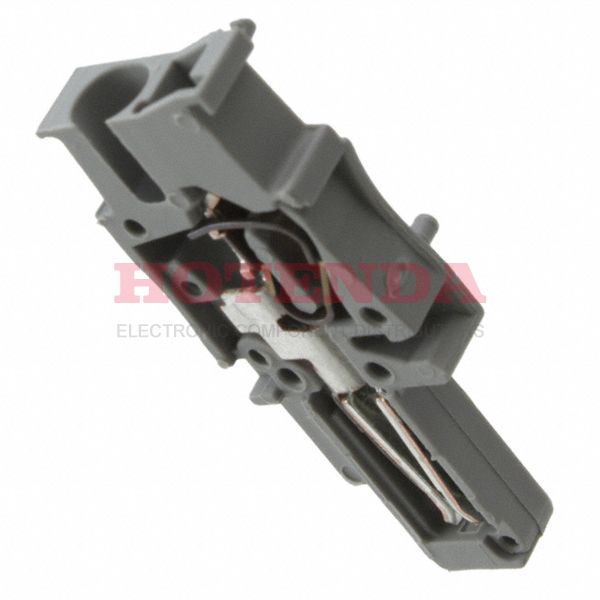

Phoenix Contact

3043043 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

3043043 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 3.169987g
PackagingBulk
Published 2011
Series CLIPLINE ST-COMBI SP
Feature Interlocking (Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Gray
Number of Rows 1
Voltage - Rated 500V
HTS Code8536.69.40.40
Insulation Height 1.535 39.00mm
Current Rating24A
Termination Style Screwless - Spring Cage, Tension Clamp
Approval Agency CB, CSA, UL, VDE
Voltage 600V
Number of Levels 1
Current 20A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 12-28 AWG
Safety Approval UL; VDE; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Wire Cross Section 4 mm2
Fastening Method SPRING LOADED
Height 39mm
Length 15.8mm
Width 5.2mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:2960 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.98000$1.98
10$1.92800$19.28
50$1.80200$90.1
100$1.65780$165.78
250$1.53172$382.93
500$1.45962$729.81

3043043 Product Details

3043043 Overview


This product is packaged in a IDC, IDT cartonIt's mounted Free Hanging (In-Line).To package the product, a Bulk case is used.It's from the CLIPLINE ST-COMBI SP Series.With its Interlocking (Side) feature, it is more powerful in many ways.Mounting of the part is based on Free Hanging.It shares many benefts with other Plug, Female Sockets products.

3043043 Features


CLIPLINE ST-COMBI SP series

3043043 Applications


There are a lot of Phoenix Contact 3043043 Terminal Blocks applications.

  • Telecommunications
  • Variable speed/frequency drivers
  • Datacom
  • Data Technology
  • Blowers
  • Industrial Automation
  • Anywhere power is distributed
  • All Electrical Machinery
  • Transportation
  • Instrumentation
