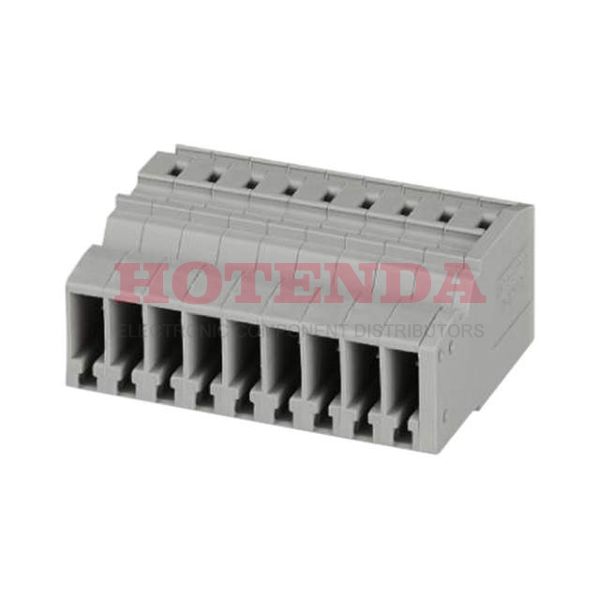

3042308

3042308

3042308

Phoenix Contact

3042308 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

3042308 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 6 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 18.969998g
PackagingBulk
Published 2011
Series CLIPLINE COMBI SC
Feature Coupling
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Receptacle, Male Pins
Number of Positions 8
Color Gray
Voltage - Rated 500V
Insulation Height 0.740 18.80mm
Current Rating24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Height 18.8mm
Length 37.2mm
Width 41.6mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:750 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$11.304186$11.304186
10$10.664327$106.64327
100$10.060685$1006.0685
500$9.491212$4745.606
1000$8.953974$8953.974

3042308 Product Details

3042308 Overview


Free Hanging (In-Line) is the mounting type for the device.We pack the product in a Bulk case.This product is from the CLIPLINE COMBI SC Series.A number of advantages can be derived from its Coupling feature.Part Free Hanging is mounted to the part.There are many benefits shared between this part and other Receptacle, Male Pins products.

3042308 Features


CLIPLINE COMBI SC series

3042308 Applications


There are a lot of Phoenix Contact 3042308 Terminal Blocks applications.

  • Anywhere power is distributed
  • Variable speed/frequency drivers
  • Datacom
  • Transportation
  • All Electrical Machinery
  • Telecommunications
  • Communication
  • LED municipal outdoor and street lighting
  • Control panels
  • Military Technology
