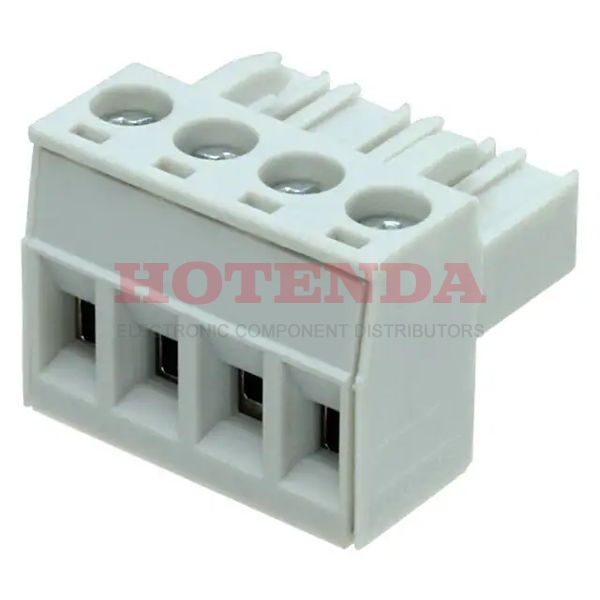

Name: 2200332
Brand: Phoenix Contact
SKU: 2200332
Price: 5.62000 USD
Availability: InStock

new-10%

2200332

Manufacturer part number:2200332

Manufacturer:Phoenix Contact

Description:2200332 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:2200332 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	COMBICON MSTBT
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Female Sockets
Color	Gray
Gender	Female
Voltage - Rated	250V
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Housing Color	Grey
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	4
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

2200332 Product Details

2200332 Overview

The product comes in a package of Screw.The mounting type of the device is Free Hanging (In-Line).Packaging is performed using a Bulk case.It's part of the COMBICON MSTBT Series.A number of benefits can be derived from the Retention Latches (Non-Wire Side) feature of this application.Free Hanging is mounting the part.Other Plug, Female Sockets products benefit from this part as well.
