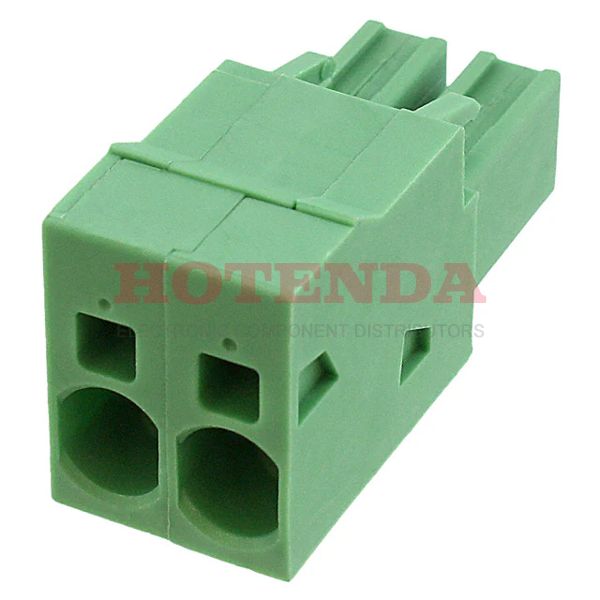

Name: 1996016
Brand: Phoenix Contact
SKU: 1996016
Price: 4.11000 USD
Availability: InStock

new-10%

1996016

Manufacturer part number:1996016

Manufacturer:Phoenix Contact

Description:1996016 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1996016 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.50003kg
Packaging	Bulk
Published	1998
Series	COMBICON SPC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Straight
Depth	19.8mm
Insulation Height	0.780 19.80mm
Reach Compliance Code	unknown
Current Rating	41A
Termination Style	Screwless - Push-In Spring
Approval Agency	UL, cULus
Voltage	600V
Number of Levels	1
Current	35A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	8 AWG
Number of Poles	2
Number of Decks	1
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	15mm
Current - IEC	41A
Fastening Method	SPRING LOADED
Height	19.8mm
Length	15.24mm
Width	38.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1996016 Product Details

1996016 Overview

A Socket packaging is included.This device's mounting type is Free Hanging (In-Line).This product is packaged in a case marked Bulk.This product is part of the COMBICON SPC Series.Also, there's PA, UL 94V-0, to name a few.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.Part Free Hanging, Plug-In is mounted to the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
