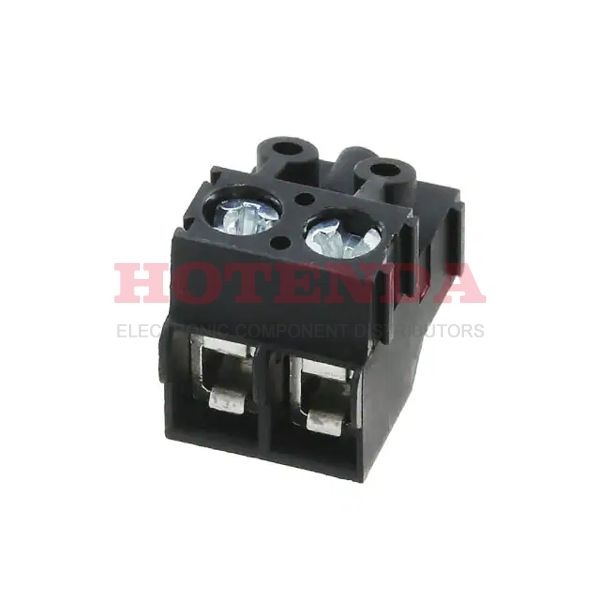

1987258

1987258

1987258

Phoenix Contact

1987258 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1987258 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Plastic
Weight 2.28001g
PackagingBulk
Published 2011
Series COMBICON PT
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug for Unshrouded Header
Number of Positions 2
Color Black
Voltage - Rated 250V
Pitch 0.197 5.00mm
Insulation Height 0.449 11.40mm
Reach Compliance Code not_compliant
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 5mm
Screw Size M2.6
Height 11.3mm
Length 10mm
Width 14.9mm
RoHS StatusRoHS Compliant
In-Stock:16279 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.437700$0.4377
10$0.412925$4.12925
100$0.389551$38.9551
500$0.367501$183.7505
1000$0.346700$346.7

1987258 Product Details

1987258 Overview


It comes in Screw, Socket packaging.Mounting type is Free Hanging (In-Line).The product is packaged in a Bulk case.The product is part of the COMBICON PT Series.There is a Free Hanging mount on the part.Other Plug for Unshrouded Header products benefit from this part as well.

1987258 Features


COMBICON PT series

1987258 Applications


There are a lot of Phoenix Contact 1987258 Terminal Blocks applications.

  • Measuring & Control Technology
  • LED municipal outdoor and street lighting
  • Embedded systems
  • Anywhere power is distributed
  • Blowers
  • Energy efficient lighting (LED)
  • Variable speed/frequency drivers
  • Refrigeration control
  • Telecommunications
  • Electrical substations
