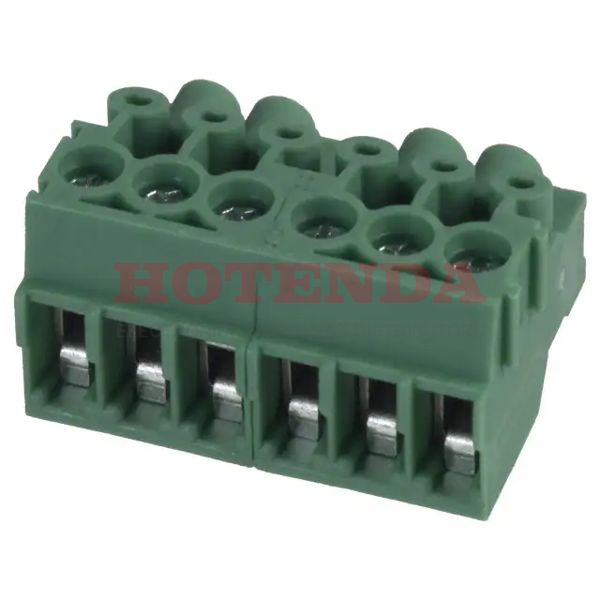

Name: 1984057
Brand: Phoenix Contact
SKU: 1984057
Price: 1.61000 USD
Availability: InStock

new-10%

1984057

Manufacturer part number:1984057

Manufacturer:Phoenix Contact

Description:1984057 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984057 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	3.970011g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle/Straight
Depth	14.6mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Number of Contacts	6
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Wire/Cable Gauge	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	90° and 180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Screw Size	M2
Stripping Length	5mm
Height	11mm
Length	21mm
Width	21mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984057 Product Details

1984057 Overview

The packaging contains Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.It has been determined that a Bulk case is necessary to package the product.Product number COMBICON PT belongs to the COMBICON PT Series.Part Free Hanging, Through Hole is mounted to the part.A supply voltage of 160V is recommended for this chip.There are a lot of similarities between this part and other Plug for Unshrouded Header products.
