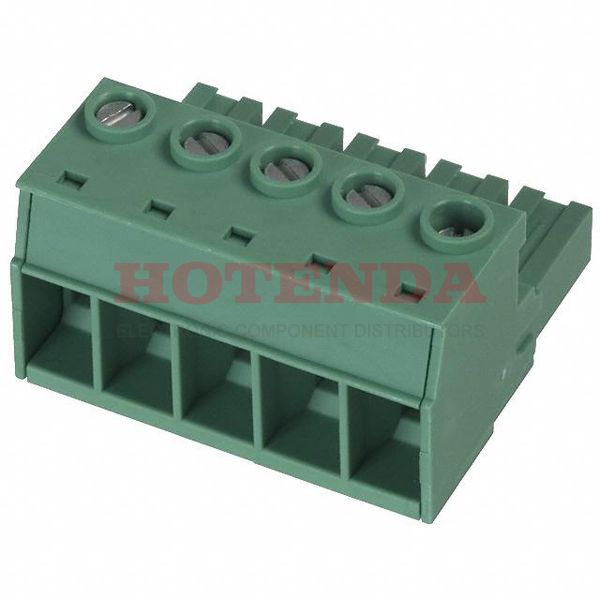

Name: 1967401
Brand: Phoenix Contact
SKU: 1967401
Price: 26.06000 USD
Availability: InStock

new

1967401

Manufacturer part number:1967401

Manufacturer:Phoenix Contact

Description:1967401 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1967401 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	44.699997g
Packaging	Bulk
Published	2004
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
Pitch	0.400 10.16mm
Insulation Height	1.094 27.80mm
Current Rating	76A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	55A
Wire Gauge (Max)	6 AWG
Wire Gauge (Min)	18 AWG
Contact Mating Finish	Silver
Number of Decks	1
Wire Gauge or Range - AWG	6-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	12mm
Current - IEC	76A
Screw Size	M4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1967401 Product Details

1967401 Overview

This product is packaged in a Screw carton.There is a Free Hanging (In-Line) mounting type for the device.It has been determined that a Bulk case is necessary to package the product.This is from the COMBICON PC Series.Also, there's PA, UL 94V-0, to name a few.There's a Free Hanging on the part.As with other Plug, Female Sockets products, this part has a lot of benefits.
