Name: 1962668
Brand: Phoenix Contact
SKU: 1962668
Price: 20.92000 USD
Availability: InStock

new

1962668

Manufacturer part number:1962668

Manufacturer:Phoenix Contact

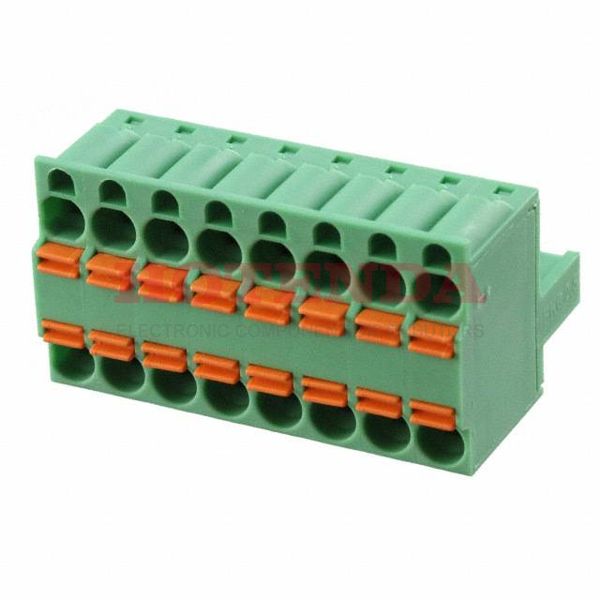

Description:Bulk 0.200 5.08mm Green 1 (Mate), 2 (Input) Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON TFKC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1962668 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	142.000011g
Packaging	Bulk
Series	COMBICON TFKC
Published	2002
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	8
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	PA, UL 94V-0
Pitch	0.200 5.08mm
Depth	22.1mm
Insulation Height	0.870 22.10mm
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Positions Per Level	8 (Mate), 16 (Input)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	22.1mm
Length	25.7mm
Width	40.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1962668 Product Details

1962668 Overview

Packaging is in the form of Socket.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON TFKC Series.Other features include PA, UL 94V-0, to name just a few.Several benefits come from the Retention Latches (Non-Wire Side) feature.There is a mounting hole at Free Hanging.There are many benefits that this part shares with other Plug, Female Sockets products as well.
