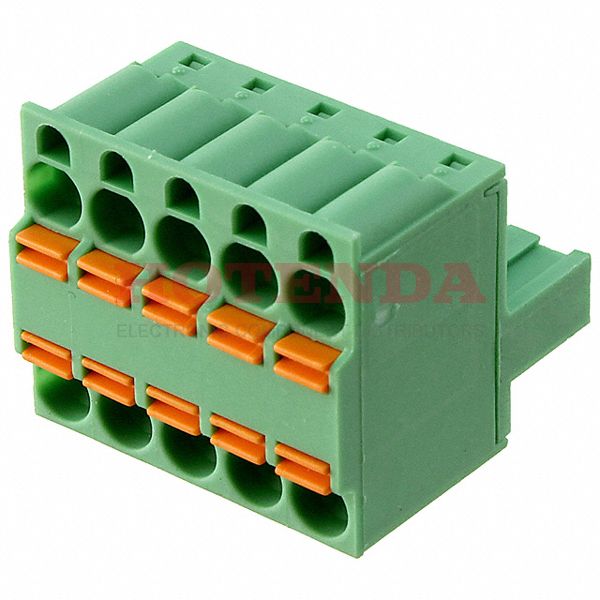

1962639

1962639

1962639

Phoenix Contact

1962639 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1962639 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 142.000011g
PackagingBulk
Published 2002
Series COMBICON TFKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 5
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
Additional FeaturePA, UL 94V-0
Pitch 0.200 5.08mm
Depth 22.1mm
Insulation Height 0.870 22.10mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1 (Mate), 2 (Input)
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Positions Per Level 5 (Mate), 10 (Input)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Fastening Method SPRING LOADED
Height 22.1mm
Length 25.7mm
Width 25.7mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:570 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$12.298009$12.298009
10$11.601895$116.01895
100$10.945184$1094.5184
500$10.325645$5162.8225
1000$9.741175$9741.175

1962639 Product Details

1962639 Overview


This product is packaged in a Socket cartonMounting type is Free Hanging (In-Line).Packaged in a Bulk case.A member of the COMBICON TFKC Series.Additionally, there are other features such as PA, UL 94V-0.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.You've got Free Hanging mounted on the part.Other Plug, Female Sockets products benefit from this part as well.

1962639 Features


COMBICON TFKC series

1962639 Applications


There are a lot of Phoenix Contact 1962639 Terminal Blocks applications.

  • Military Technology
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • Refrigeration control
  • Data Technology
  • Datacom
  • All Electrical Machinery
  • Measuring & Control Technology
  • Anywhere power is distributed
  • Industrial Automation
