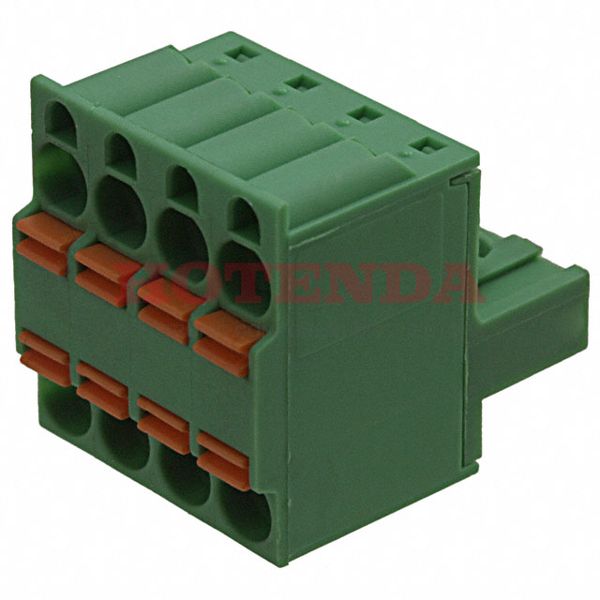

Name: 1962626
Brand: Phoenix Contact
SKU: 1962626
Price: 11.35000 USD
Availability: InStock

new

1962626

Manufacturer part number:1962626

Manufacturer:Phoenix Contact

Description:Bulk 0.200 5.08mm Green 1 (Mate), 2 (Input) Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON TFKC Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1962626 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	142.000011g
Packaging	Bulk
Series	COMBICON TFKC
Published	2002
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Pitch	0.200 5.08mm
Depth	22.1mm
Insulation Height	0.870 22.10mm
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Positions Per Level	4 (Mate), 8 (Input)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	22.1mm
Length	25.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1962626 Product Details

1962626 Overview

There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON TFKC belongs to the COMBICON TFKC Series.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.There is a Free Hanging mount on the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
