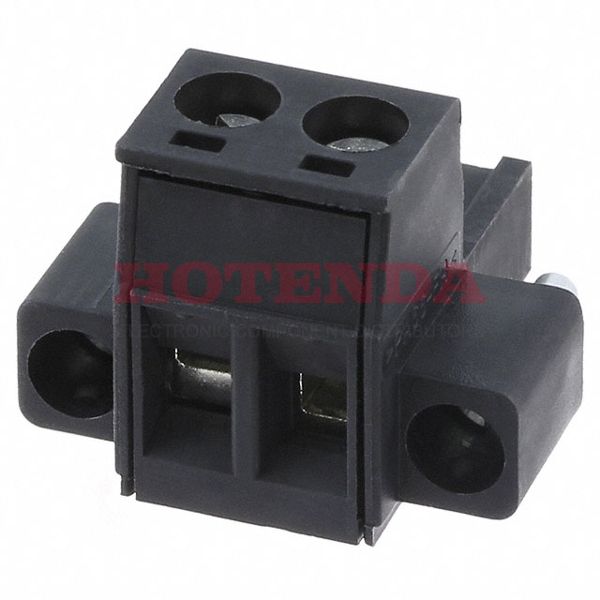

Name: 1961986
Brand: Phoenix Contact
SKU: 1961986
Price: 2.67000 USD
Availability: InStock

new-10%

1961986

Manufacturer part number:1961986

Manufacturer:Phoenix Contact

Description:1961986 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1961986 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0, SAFETY APPROVAL: CSA
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	320V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	CB; CCA; CUL; GOST; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	2
Screw Size	M3
Length	5.08mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1961986 Product Details

1961986 Overview

The packaging is Screw.Mounting type Free Hanging (In-Line) is assigned to the device.The product is packaged in a Bulk case.This is from the COMBICON MSTB Series.In addition, there are other features such as PA, UL 94V-0, SAFETY APPROVAL: CSA, to mention only a few.A number of benefits can be derived from the Mating Flange feature of this application.It's mounted by Cable, Free Hanging.There should be no voltage above 0 on the supply line for this chip.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
