1952157

1952157

1952157

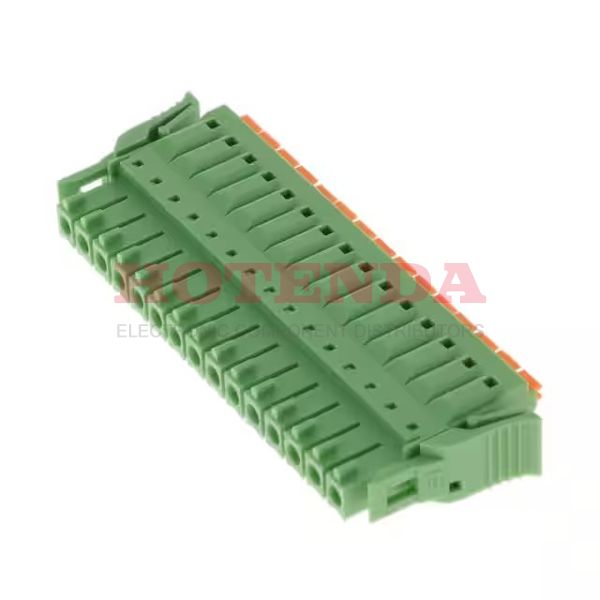

Phoenix Contact

1952157 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1952157 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 8.31999g
PackagingBulk
Published 2003
Series COMBICON FMC
Feature Latch Lock
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Depth 7.8mm
Insulation Height 0.307 7.80mm
Current Rating8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 15
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 15
Fastening Method SPRING LOADED
Length 22.9mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:371 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$23.966000$23.966
10$22.609434$226.09434
100$21.329655$2132.9655
500$20.122316$10061.158
1000$18.983317$18983.317

1952157 Product Details

1952157 Overview


The mounting type of the device is Free Hanging (In-Line).To package the product, a Bulk case is used.The product belongs to the COMBICON FMC Series.As well as PA, UL 94V-0, to name a few.This feature makes it more powerful in a number of ways due to its Latch Lock feature.By Free Hanging, the part is mounted.Other Plug, Female Sockets products share lots of benefits with this part.

1952157 Features


COMBICON FMC series

1952157 Applications


There are a lot of Phoenix Contact 1952157 Terminal Blocks applications.

  • Anywhere power is distributed
  • Embedded systems
  • Medical technology
  • Transportation
  • LED municipal outdoor and street lighting
  • Blowers
  • Communication
  • Instrumentation
  • Datacom
  • All Electrical Machinery
