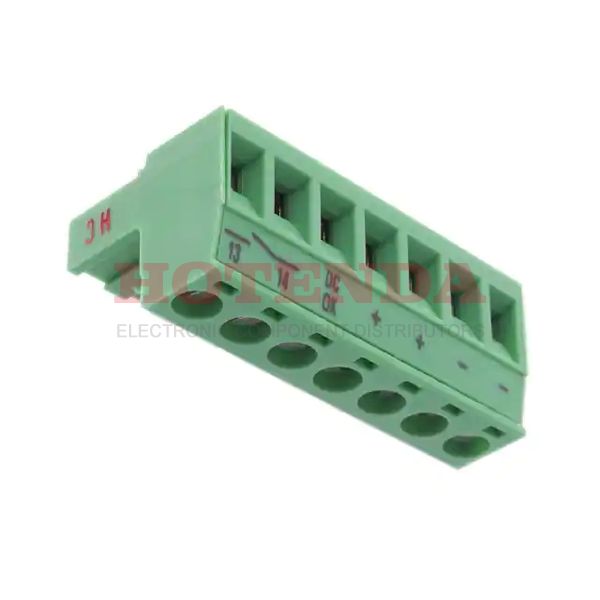

1951925

1951925

1951925

Phoenix Contact

1951925 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1951925 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2014
Series COMBICON MSTB
Feature Retention Latches (Non-Wire Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 7
Color Green
Voltage - Rated 250V
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Current Rating16A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 16A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Height 18.2mm
Length 15mm
Width 35.56mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:2786 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.136618$3.136618
10$2.959073$29.59073
100$2.791579$279.1579
500$2.633565$1316.7825
1000$2.484496$2484.496

1951925 Product Details

1951925 Overview


The product comes in a package of Screw, Socket.This device has a mounting type of Free Hanging (In-Line).It's packaged in a Bulk case.It is part of the COMBICON MSTB Series of products.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.Free Hanging is mounting the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

1951925 Features


COMBICON MSTB series

1951925 Applications


There are a lot of Phoenix Contact 1951925 Terminal Blocks applications.

  • Refrigeration control
  • Measuring & Control Technology
  • Energy efficient lighting (LED)
  • Electrical substations
  • Medical technology
  • Variable speed/frequency drivers
  • Control panels
  • Anywhere power is distributed
  • Military Technology
  • Embedded systems
