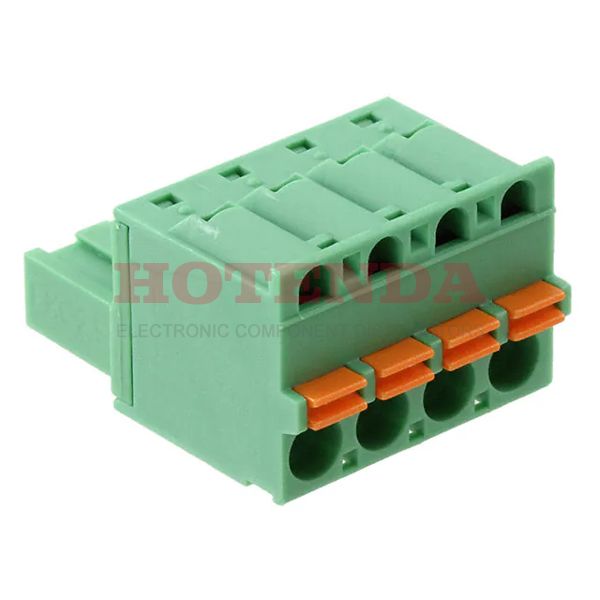

Name: 1942390
Brand: Phoenix Contact
SKU: 1942390
Price: 5.58000 USD
Availability: InStock

new-10%

1942390

Manufacturer part number:1942390

Manufacturer:Phoenix Contact

Description:1942390 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1942390 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	7.209992g
Packaging	Bulk
Published	2011
Series	COMBICON FKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	4
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	20.94mm
Length	15mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1942390 Product Details

1942390 Overview

The product comes in a package of Socket.Free Hanging (In-Line) is the mounting type of the device.Packaged in a Bulk case.It's part of the COMBICON FKC Series.Many aspects of its Retention Latches (Non-Wire Side) feature increase its effectiveness.Part Free Hanging is mounted to the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
