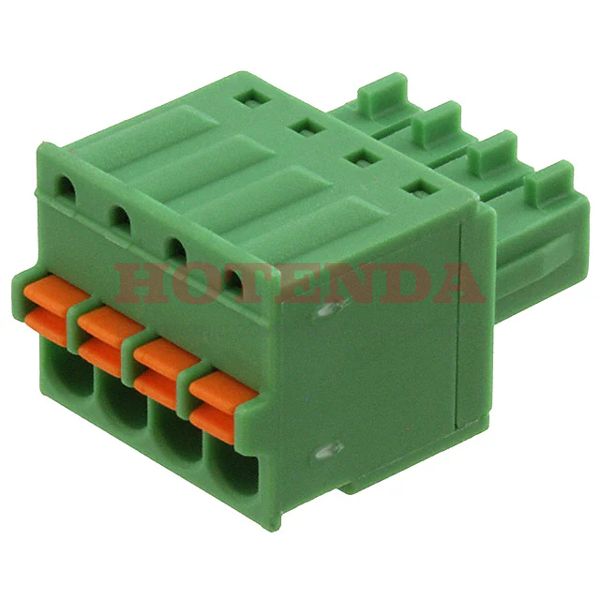

Name: 1939934
Brand: Phoenix Contact
SKU: 1939934
Price: 8.51000 USD
Availability: InStock

new-10%

1939934

Manufacturer part number:1939934

Manufacturer:Phoenix Contact

Description:1939934 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1939934 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	3.815988g
Packaging	Bulk
Published	2002
Series	COMBICON FK-MCP
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	20.8mm
Insulation Height	0.488 12.40mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Approval Agency	CB, VDE, cULus
Number of Contacts	4
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	14.9mm
Length	14.9mm
Width	20.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1939934 Product Details

1939934 Overview

This product is packaged in a Socket cartonIt's mounted Free Hanging (In-Line).In order to package the product, a Bulk case is used.The product is a part of the COMBICON FK-MCP Series.There's a Cable, Free Hanging on the part.This chip's supply voltage should not exceed 160V.The benefts of this part are similar to those of other Plug, Female Sockets products.
