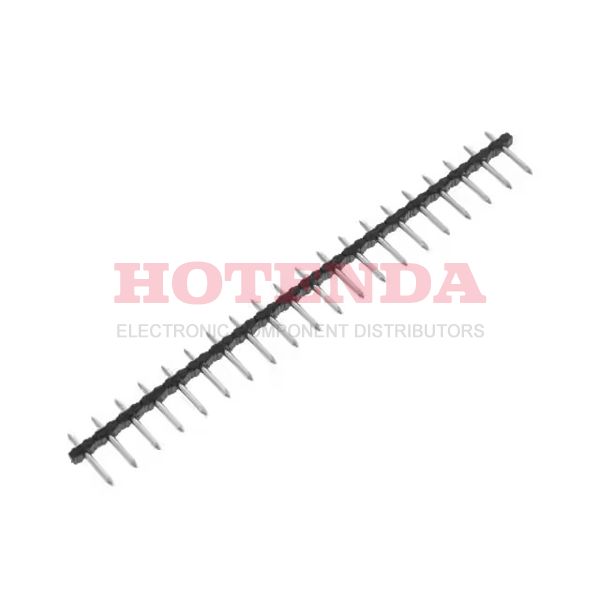

1935585

1935585

1935585

Phoenix Contact

1935585 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1935585 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact MaterialCopper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2014
Series COMBICON PST
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 250V
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.079 2.00mm
Current Rating12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 16A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 20
Header Orientation Vertical
Current - IEC 12A
Number of Positions Per Level 20
Height 13mm
Length 2.8mm
Width 100mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:4525 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.658750$1.65875
10$1.564859$15.64859
100$1.476282$147.6282
500$1.392719$696.3595
1000$1.313885$1313.885

1935585 Product Details

1935585 Overview


There is a mounting type of Through Hole for this device.This product is packaged in a case marked Bulk.A product of the COMBICON PST Series, it belongs to the range of products of that series.This part is mounted by Through Hole. The benefts of this part are similar to those of other Header, Male Pins, Unshrouded products.

1935585 Features


COMBICON PST series

1935585 Applications


There are a lot of Phoenix Contact 1935585 Terminal Blocks applications.

  • Control panels
  • Refrigeration control
  • Energy efficient lighting (LED)
  • Data Technology
  • Datacom
  • Industrial Automation
  • Measuring & Control Technology
  • Variable speed/frequency drivers
  • Anywhere power is distributed
  • Medical technology
