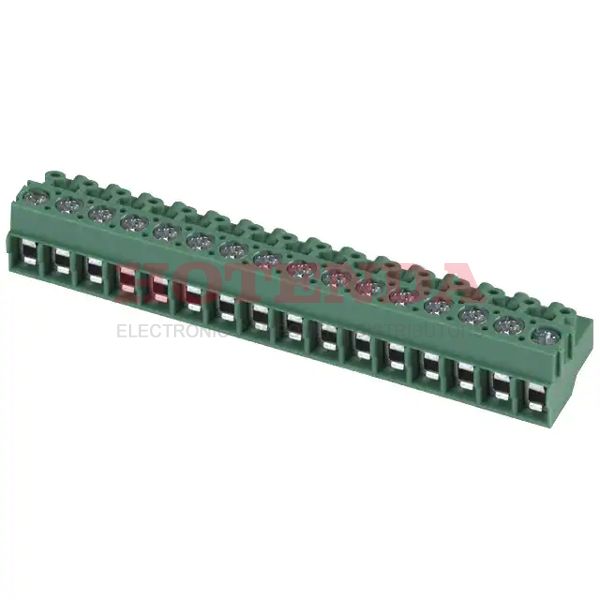

Name: 1935006
Brand: Phoenix Contact
SKU: 1935006
Price: 3.51000 USD
Availability: InStock

new-10%

1935006

Manufacturer part number:1935006

Manufacturer:Phoenix Contact

Description:1935006 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1935006 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Contact Plating	Tin
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	18.039992g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Number of Positions	16
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight/Right Angle
Insulation Height	0.449 11.40mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	16
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Wire/Cable Gauge	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	5mm
Screw Size	M2.6
Height	11.3mm
Length	14.9mm
Width	80mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1935006 Product Details

1935006 Overview

The product is packaged in Screw, Socket.There is a mounting type of Free Hanging (In-Line) for this device.Packaged in a Bulk case.Specifically, it is one of the products in the COMBICON PT Series.In addition, there are other features such as PA, 94V-0, to mention only a few.Free Hanging, Through Hole mounts the part.Compared to other Plug for Unshrouded Header products, this part has a lot of benefits to offer.
