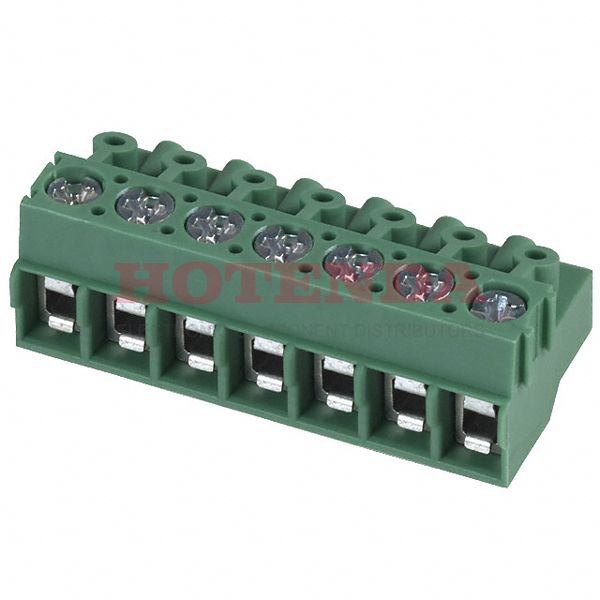

Name: 1934913
Brand: Phoenix Contact
SKU: 1934913
Price: 1.63000 USD
Availability: InStock

new-10%

1934913

Manufacturer part number:1934913

Manufacturer:Phoenix Contact

Description:1934913 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1934913 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	8.049989g
Packaging	Bulk
Published	2003
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle/Straight
Insulation Height	0.449 11.40mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	7
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	7
Screw Size	M2.6
Stripping Length	5mm
Height	11.3mm
Length	14.9mm
Width	30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1934913 Product Details

1934913 Overview

This product is packaged in a Screw cartonFree Hanging (In-Line) indicates that the device is mounted.The product is packaged in a Bulk case.As a product of the COMBICON PT Series, it can be found in this category.Furthermore, there are other features available, such as PA, 94V-0, to name a few.There is a mounting hole at Cable, Free Hanging.There are a lot of advantages this part has in common with other Plug for Unshrouded Header parts.
