1933260

1933260

1933260

Phoenix Contact

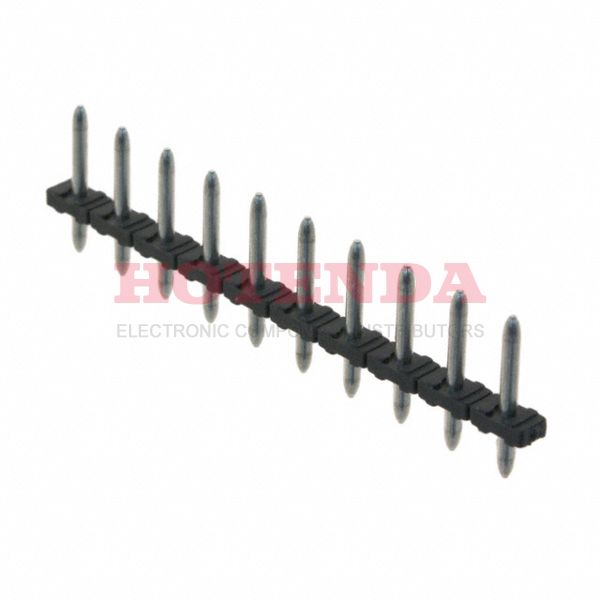

1933260 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1933260 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 1.700008g
PackagingBulk
Published 2005
Series COMBICON PST
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Number of Positions 10
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePA, UL 94V0
HTS Code8536.69.40.40
Voltage - Rated DC 400V
Pitch 0.197 5.00mm
Orientation Straight
Depth 2.8mm
Insulation Height 0.079 2.00mm
Current Rating12μA
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 16A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 10
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 10
Safety Approval UL
Header Orientation Vertical
Length 50mm
Width 45mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:8314 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.793699$0.793699
10$0.748772$7.48772
100$0.706389$70.6389
500$0.666405$333.2025
1000$0.628684$628.684

1933260 Product Details

1933260 Overview


Its mounting type is Through Hole.A Bulk case is used for packaging.Among the products in the COMBICON PST Series, it is one of the most popular.To name a few, there is also PA, UL 94V0.There's a Through Hole mount on the part.As with other Header, Male Pins, Unshrouded products, this part also offers a wide range of benefits.

1933260 Features


COMBICON PST series

1933260 Applications


There are a lot of Phoenix Contact 1933260 Terminal Blocks applications.

  • Transportation
  • All Electrical Machinery
  • Embedded systems
  • Medical technology
  • Automotive Electronics
  • Datacom
  • Industrial Automation
  • Electrical substations
  • Anywhere power is distributed
  • Blowers
