1925757

1925757

1925757

Phoenix Contact

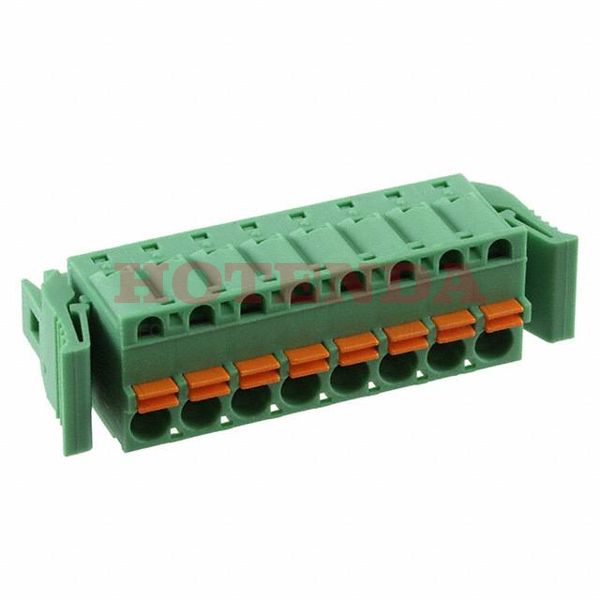

1925757 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1925757 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 14.340011g
PackagingBulk
Published 2003
Series COMBICON FKC
Feature Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional FeaturePA, UL 94V0
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 8
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Height 25.1mm
Length 15mm
Width 54.06mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:443 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$10.676545$10.676545
10$10.072213$100.72213
100$9.502087$950.2087
500$8.964233$4482.1165
1000$8.456824$8456.824

1925757 Product Details

1925757 Overview


The product comes in a package of Socket.Free Hanging (In-Line) indicates that the device is mounted.Bulk cases are used to package the product.COMBICON FKC Series product.In addition, there are other features such as PA, UL 94V0, to mention only a few.A number of features make the Latch Lock, Retention Latches (Non-Wire Side) feature more powerful.You've got Free Hanging mounted on the part.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1925757 Features


COMBICON FKC series

1925757 Applications


There are a lot of Phoenix Contact 1925757 Terminal Blocks applications.

  • Automotive Electronics
  • Telecommunications
  • LED municipal outdoor and street lighting
  • Communication
  • Energy efficient lighting (LED)
  • All Electrical Machinery
  • Military Technology
  • Instrumentation
  • Refrigeration control
  • Measuring & Control Technology
