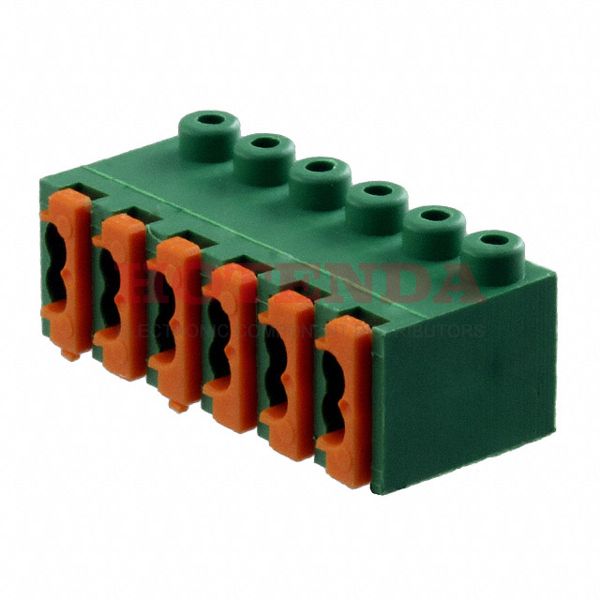

Name: 1913963
Brand: Phoenix Contact
SKU: 1913963
Price: 2.99000 USD
Availability: InStock

new-10%

1913963

Manufacturer part number:1913963

Manufacturer:Phoenix Contact

Description:1913963 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1913963 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper, Tin
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Weight	1.970008g
Packaging	Bulk
Published	2005
Series	COMBICON FK-MPT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
Pitch	0.138 3.50mm
Orientation	Straight
Depth	9.5mm
Insulation Height	0.335 8.51mm
Current Rating	4A
Termination Style	Screwless - Spring Cage, Tension Clamp
Number of Contacts	6
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	4A
Number of Levels	1
Current	4A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	20 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	20-28 AWG
Voltage - IEC	250V
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.12-0.5mm2
Wire Strip Length	6.5mm
Wire Cross Section	0.5 mm2
Fastening Method	SPRING LOADED
Height	2mm
Length	21.5mm
Width	21.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1913963 Product Details

1913963 Overview

Free Hanging (In-Line) is the type of mounting for the device.It's packaged in a Bulk case.The product is a member of the COMBICON FK-MPT Series.Then there's PBT, 94V-0, for example.Part Free Hanging, Through Hole is mounted to the part.In order for this chip to function properly, the supply voltage should not exceed 160V.Compared to other Plug for Unshrouded Header products, this part has a lot of benefits to offer.
