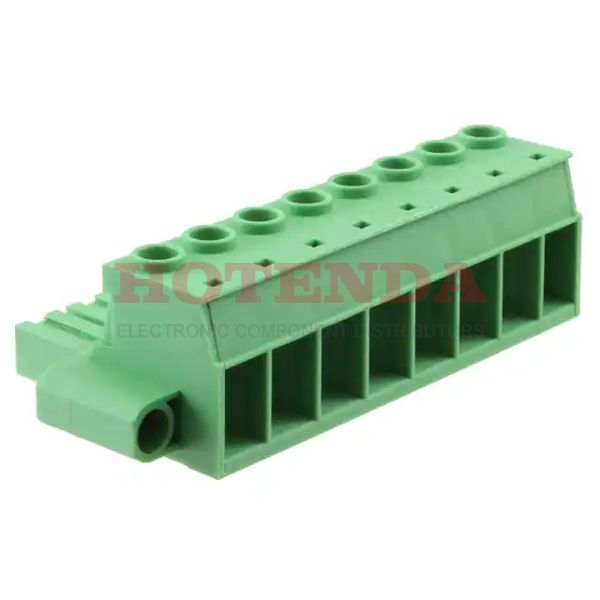

Name: 1913633
Brand: Phoenix Contact
SKU: 1913633
Price: 34.53000 USD
Availability: InStock

new

1913633

Manufacturer part number:1913633

Manufacturer:Phoenix Contact

Description:1913633 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1913633 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	68.889993g
Packaging	Bulk
Published	2002
Series	COMBICON PC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	8
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V0
Pitch	0.400 10.16mm
Insulation Height	1.085 27.55mm
Reach Compliance Code	unknown
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	50A
Wire Gauge (Max)	8 AWG
Wire Gauge (Min)	18 AWG
Contact Mating Finish	Silver
Number of Decks	1
Wire Gauge or Range - AWG	8-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-10mm2
Wire Strip Length	12mm
Current - IEC	41A
Screw Size	M4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1913633 Product Details

1913633 Overview

Packaging is in the form of Screw.There is a Free Hanging (In-Line) mounting type for the device.An orange Bulk case is used to package the product.The product is a member of the COMBICON PC Series.Also, there's PA, UL 94V0, to name a few.Several benefits come from the Mating Flange feature.This part is mounted by Free Hanging. With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
