1913565

1913565

1913565

Phoenix Contact

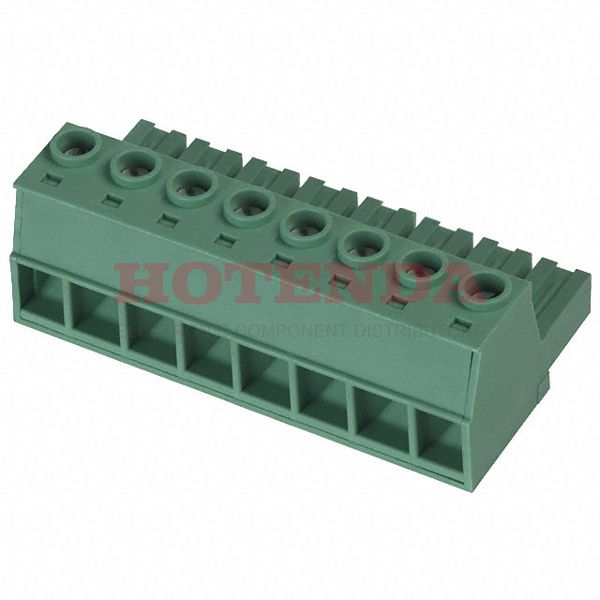

1913565 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1913565 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 65.079987g
PackagingBulk
Published 2002
Series COMBICON PC
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional FeaturePA, UL 94V0
Pitch 0.400 10.16mm
Orientation Right Angle
Insulation Height 1.085 27.55mm
Reach Compliance Code unknown
Current Rating41A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 8
Voltage 600V
Max Current Rating 41A
Number of Levels 1
Current 50A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 8 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.75-10mm2
Wire Strip Length 12mm
Screw Size M4
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:270 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$34.270149$34.270149
10$32.330329$323.30329
100$30.500311$3050.0311
500$28.773878$14386.939
1000$27.145168$27145.168

1913565 Product Details

1913565 Overview


Screw packaging is included.Free Hanging (In-Line) is the mounting type for the device.We package the product with a Bulk case.A product of the COMBICON PC Series, it belongs to the range of products of that series.Further, there are features such as PA, UL 94V0, to name only a few.There is a mounting hole at Cable, Free Hanging.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1913565 Features


COMBICON PC series

1913565 Applications


There are a lot of Phoenix Contact 1913565 Terminal Blocks applications.

  • Transportation
  • All Electrical Machinery
  • LED municipal outdoor and street lighting
  • Anywhere power is distributed
  • Data Technology
  • Blowers
  • Energy efficient lighting (LED)
  • Control panels
  • Refrigeration control
  • Variable speed/frequency drivers
