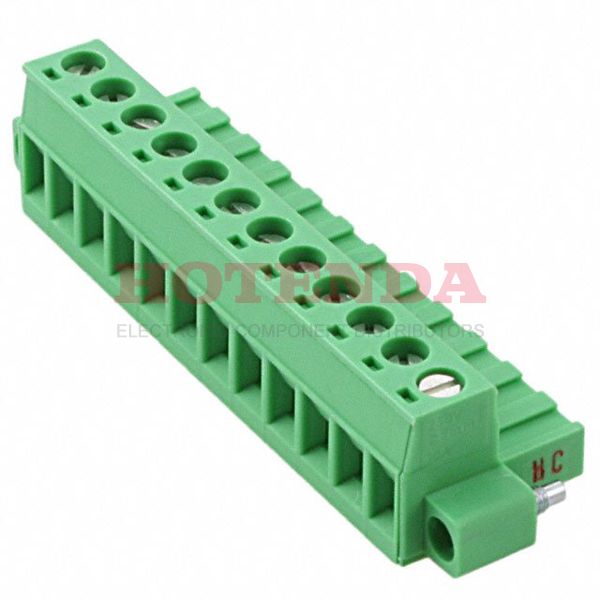

Name: 1912281
Brand: Phoenix Contact
SKU: 1912281
Price: 14.96000 USD
Availability: InStock

new

1912281

Manufacturer part number:1912281

Manufacturer:Phoenix Contact

Description:1912281 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1912281 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	21.140013g
Packaging	Bulk
Published	2001
Series	COMBICON MSTB
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	15mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, VDE, cULus
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	12
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	70.36mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1912281 Product Details

1912281 Overview

It comes in Screw, Socket packaging.Free Hanging (In-Line) indicates that the device is mounted.It has been determined that a Bulk case is necessary to package the product.It's part of the COMBICON MSTB Series.Other features include PA, UL 94V0, to name just a few.A number of features make the Mating Flange feature more powerful.Mounting of the part is based on Free Hanging, Plug-In.This part shares lots of benefits with other Plug, Female Sockets products.
