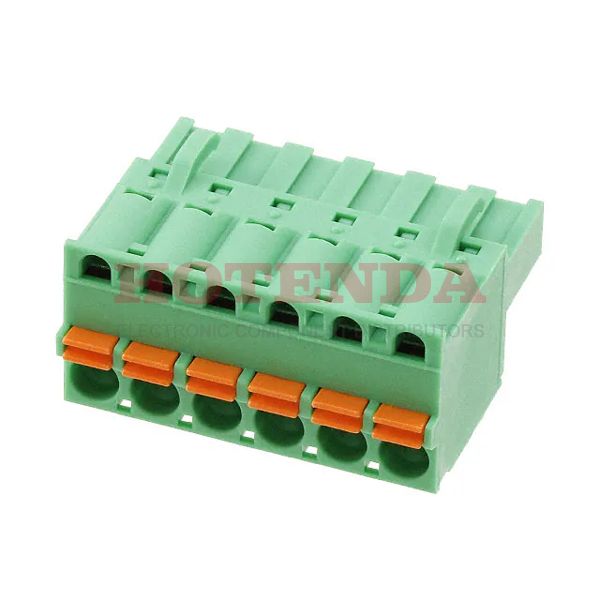

1902152

1902152

1902152

Phoenix Contact

1902152 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1902152 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 10.699989g
PackagingBulk
Published 2003
Series COMBICON FKCT
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional FeaturePA, 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 6
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Height 25.6mm
Length 15mm
Width 30.58mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:943 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$8.221107$8.221107
10$7.755761$77.55761
100$7.316755$731.6755
500$6.902600$3451.3
1000$6.511887$6511.887

1902152 Product Details

1902152 Overview


You get it in Socket packaging.The mounting type of the device is Free Hanging (In-Line).We use a Bulk case to package the product.The product is a part of the COMBICON FKCT Series.Besides that, there's also PA, 94V-0, to name a few.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.There is a mounting hole at Free Hanging.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1902152 Features


COMBICON FKCT series

1902152 Applications


There are a lot of Phoenix Contact 1902152 Terminal Blocks applications.

  • Anywhere power is distributed
  • LED municipal outdoor and street lighting
  • Blowers
  • Automotive Electronics
  • Transportation
  • All Electrical Machinery
  • Embedded systems
  • Instrumentation
  • Telecommunications
  • Refrigeration control
