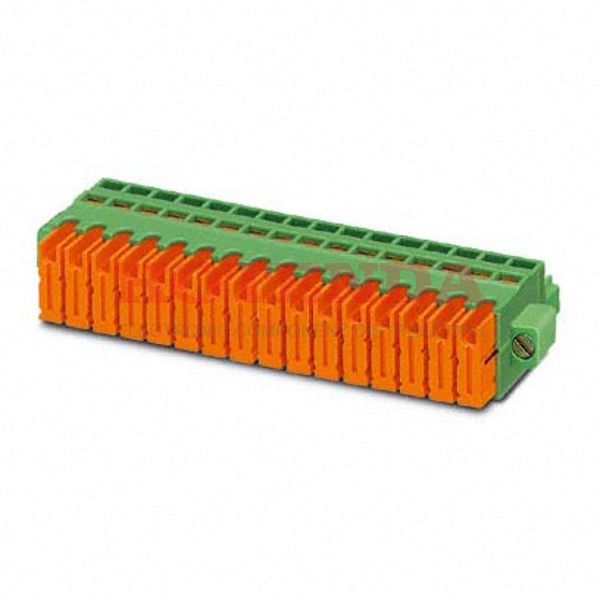

Name: 1897542
Brand: Phoenix Contact
SKU: 1897542
Price: 3.75000 USD
Availability: InStock

new-10%

1897542

Manufacturer part number:1897542

Manufacturer:Phoenix Contact

Description:1897542 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1897542 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	96.999991g
Packaging	Bulk
Published	2010
Series	COMBICON QC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	IDC, IDT, Socket
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	200V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Insulation Height	0.508 12.90mm
Reach Compliance Code	unknown
Current Rating	6A
Termination Style	IDC
Voltage	300V
Number of Levels	1
Current	6A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	20 AWG
Voltage - UL	300V
Wire Gauge or Range - AWG	20-24 AWG
Voltage - IEC	400V
Number of Ways	2
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.34-0.5mm2
Number of Positions Per Level	2
Fastening Method	SCREW
Height	18.01mm
Length	12.9mm
Width	22.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1897542 Product Details

1897542 Overview

A IDC, IDT, Socket package is included with it.Mounting type Free Hanging (In-Line) is selected for the device.A Bulk case is used to package the product.This product is from the COMBICON QC Series.There are a number of advantages to its Mating Flange feature.Mounted by Free Hanging.There are many benefits shared between this part and other Plug, Female Sockets products.
