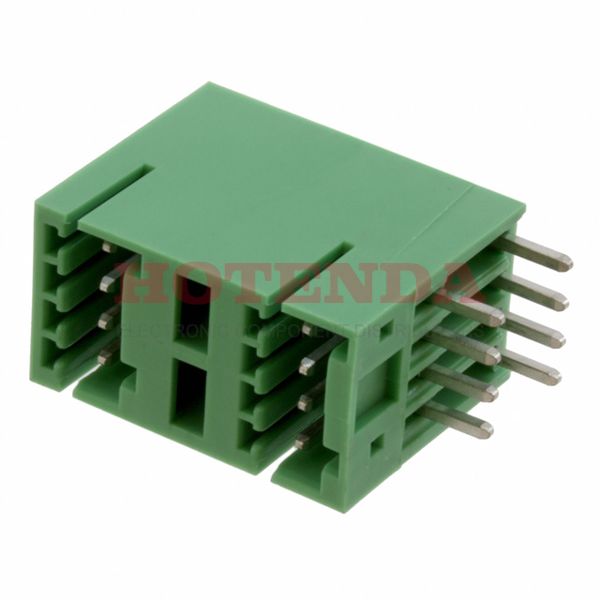

Name: 1894820
Brand: Phoenix Contact
SKU: 1894820
Price: 6.40000 USD
Availability: InStock

new-10%

1894820

Manufacturer part number:1894820

Manufacturer:Phoenix Contact

Description:1894820 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1894820 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	3.799998g
Packaging	Bulk
Published	2011
Series	MICRO-COMBICON MCD
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	80V
Pitch	0.098 2.50mm
Orientation	Right Angle
Depth	17.5mm
Insulation Height	0.862 21.89mm
Current Rating	4A
Termination Style	Solder
Voltage	125V
Contact Tail Length	0.150 3.81mm
Max Current Rating	4A
Number of Levels	2
Current	4A
Number of Decks	1
Voltage - IEC	320V
Positions Per Level	4
Number of Ways	4
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	17.5mm
Length	11.9mm
Width	25.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1894820 Product Details

1894820 Overview

This product is packaged in a Plug box.A Through Hole mounting type is specified for the device.Packaging for the product is carried out via a Bulk case.This product is from the MICRO-COMBICON MCD Series.Through Hole represents the mounting point for the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
