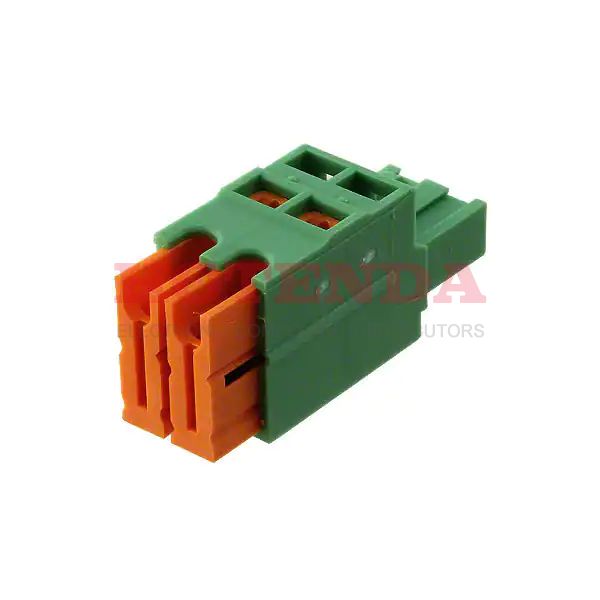

Phoenix Contact

1883255 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1883255 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 3.84g
PackagingBulk
Published 2012
Series COMBICON QC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT, Socket
Type Plug, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 500V
Additional FeaturePOLYAMIDE, 94V-0
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating10A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 18 AWG
Number of Decks 1
Wire Gauge or Range - AWG 18-22 AWG
Voltage - IEC 1kV
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.5-1mm2
Height 15mm
Length 10.98mm
Width 28.2mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:2210 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$2.98000$149

1883255 Product Details

1883255 Overview


The packaging contains IDC, IDT, Socket.Free Hanging (In-Line) indicates that the device is mounted.Packaging for the product is carried out via a Bulk case.As a product of the COMBICON QC Series, it can be found in this category.Additionally, there are features like POLYAMIDE, 94V-0, just to name a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Part Free Hanging is mounted to the part.This part shares lots of benefits with other Plug, Female Sockets products.

1883255 Features


COMBICON QC series

1883255 Applications


There are a lot of Phoenix Contact 1883255 Terminal Blocks applications.

  • Anywhere power is distributed
  • Refrigeration control
  • Control panels
  • Measuring & Control Technology
  • LED municipal outdoor and street lighting
  • Automotive Electronics
  • Embedded systems
  • Communication
  • Transportation
  • Telecommunications
