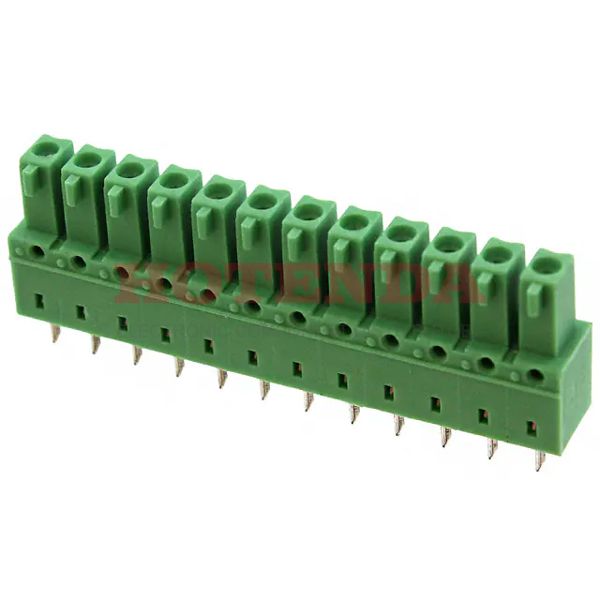

Name: 1875522
Brand: Phoenix Contact
SKU: 1875522
Price: 15.12000 USD
Availability: InStock

new

1875522

Manufacturer part number:1875522

Manufacturer:Phoenix Contact

Description:1875522 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1875522 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	4.090014g
Packaging	Bulk
Published	2010
Series	COMBICON IMCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Socket
Type	Header, Female Sockets
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Depth	6.85mm
Insulation Height	0.571 14.50mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	320V
Number of Ways	12
Header Orientation	Vertical
Fastening Method	PLUG IN
Height	17.9mm
Length	46.51mm
Width	46.51mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1875522 Product Details

1875522 Overview

The packaging contains Socket.The device's mounting type is Through Hole.Packaged in a Bulk case.The product is part of the COMBICON IMCV Series.This part is mounted by Through Hole. Many Header, Female Sockets products share the same benefits as this part.
